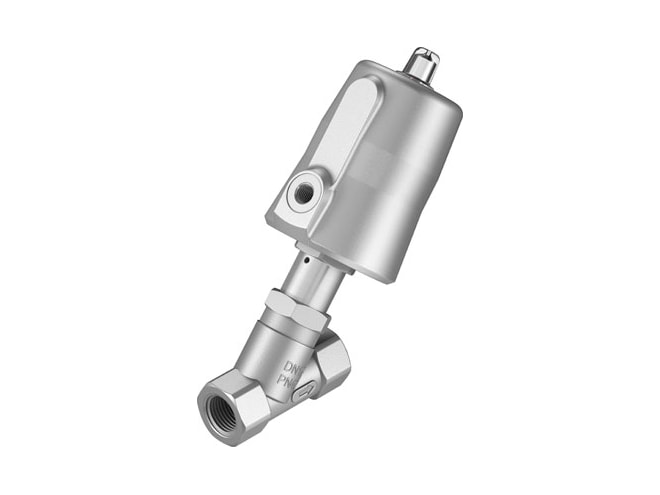

Festo VZXF-L-M22C-M-B-G12-130-M1-V4V4T-50-40 Angle Seat Valve

Features

• Poppet valve with piston drive design
• Pneumatic type of actuation
• Soft sealing principle
• Optional mounting position
• In-line installation type of mounting
• Threaded coupling G1/2 to DIN ISO 228 line connection
• 13MM nominal size
• 2/2-way, closed, monostable valve function
• Non-reversible flow direction
• 0MPA medium pressure
• 4MPA medium pressure
• 0BAR medium pressure
• 40BAR medium pressure
• 40 nominal pressure pN
• Without flow control option exhaust-air function
• Mechanical spring type of reset
• Externally controlled type of piloting
• 0.6MPA operating pressure
• 1MPA operating pressure
• 6BAR operating pressure
• 10BAR operating pressure
• 87PSI operating pressure
• 145PSI operating pressure
• 991367 symbol
• Vapour medium
• Mineral oil-based hydraulic fluid medium
• Inert gases medium
• Mineral oil medium
• Water medium
• Filtered compressed air, grade of filtration 200 µm medium
• Neutral fluids medium
• Below valve seat, for gaseous and liquid media direction of flow
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• 60022S max. viscosity
• -40GC media temperature
• 200GC media temperature
• 3.3MQH flow rate kv
• RoHS-compliant note on materials
• VDMA24364 zone III lABS (PWIS) conformity
• Stainless steel casting material process valve housing
• 1.4408 material number process valve housing
• PTFE material spindle seal
• PTFE material seat seal
• 1300G product weight
• 3 - high corrosion stress corrosion resistance class cRC
• High-alloy stainless steel material drive housing
• -10GC ambient temperature to 60GC ambient temperature
• Pneumatic connection female thread G1/8
