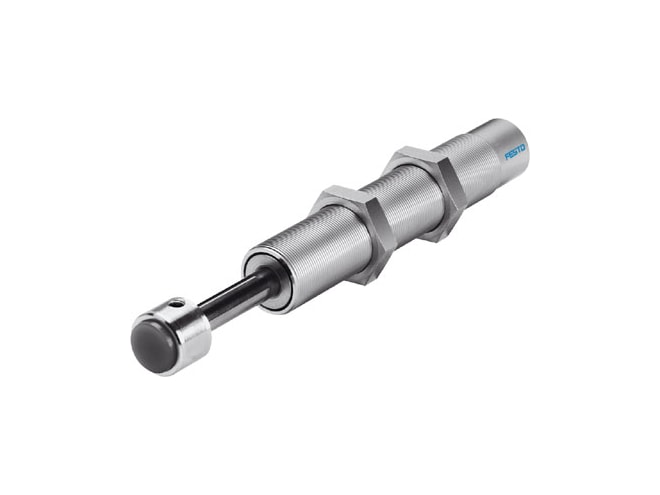

Festo YSR-16-20-C Shock Absorber

$268.10
Part Numbers
  • YSR-16-20-C
  • 34573
Highlights...

Features

  • 16 size
  • 20MM stroke
  • Self-adjusting cushioning
  • Optional mounting position
  • Without position detection
  • 991497 symbol
  • 3M/S max. impact speed
  • 0.3S reset time at room temperature
  • 1S reset time at min. ambient temperature
  • Pushing mode of operation
  • Single-acting mode of operation
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • -10GC ambient temperature
  • 80GC ambient temperature
  • 20MM cushioning length
  • 2000N max. stop force
  • 30J max. energy consumption per stroke
  • 64000J max. energy consumption per hour
  • 0.16J max. residual energy
  • 6N reset force
  • 60N min. insertion force
  • 185G product weight
  • 90KG load range
  • Via lock nut type of mounting
  • RoHS-compliant note on materials
  • NBR material seals
  • Galvanised steel material housing
  • High-alloy steel material piston rod
