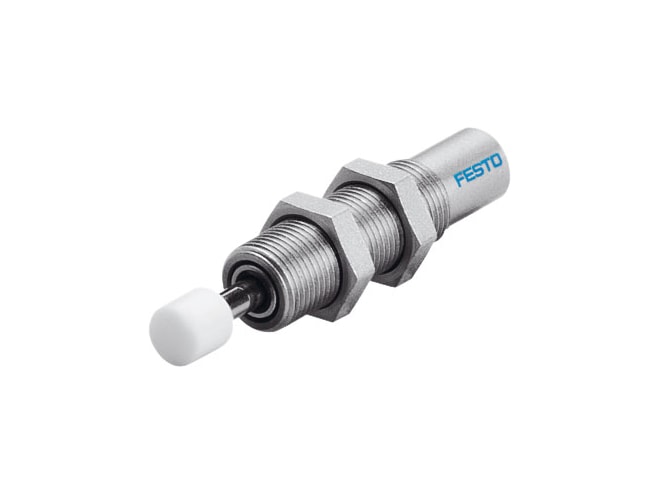

Festo YSR-4-4-C Shock Absorber

$137.84
Part Numbers
  • YSR-4-4-C
  • 540060
Highlights...

Features

  • 4 size
  • 4MM stroke
  • Self-adjusting cushioning
  • Optional mounting position
  • Without position detection
  • 991497 symbol
  • 2M/S max. impact speed
  • 0.2S reset time at room temperature
  • 1S reset time at min. ambient temperature
  • Pushing mode of operation
  • Single-acting mode of operation
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • -10GC ambient temperature
  • 80GC ambient temperature
  • 4MM cushioning length
  • 100N max. stop force
  • 0.6J max. energy consumption per stroke
  • 5600J max. energy consumption per hour
  • 0.006J max. residual energy
  • 0.7N reset force
  • 6.5N min. insertion force
  • 5G product weight
  • 1.2KG load range
  • Via lock nut type of mounting
  • RoHS-compliant note on materials
  • NBR material seals
  • High-alloy steel material housing
  • High-alloy steel material piston rod
