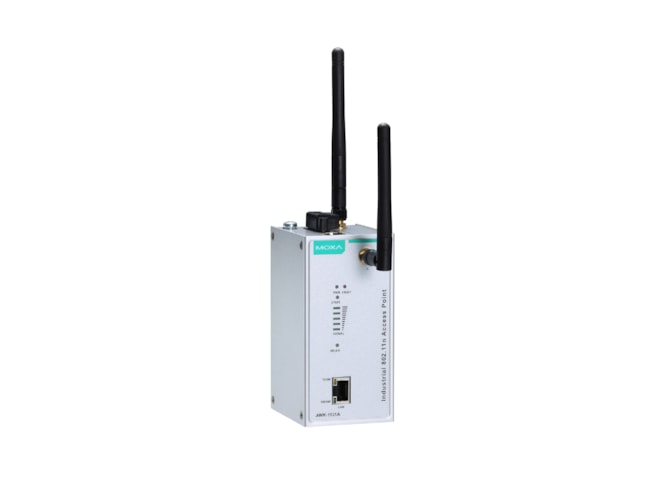

Moxa AWK-1131A-US WLAN AP / Client

Industrial IEEE 802.11a/b/g/n wireless AP/client, 0 to 60°C operating temperature, 2.4 or 5GHz bands.

$824.68
Part Number
  • AWK-1131A-US
Highlights...

Features

  • IEEE 802.11a/b/g/n AP/client support
  • 0 to 60°C (32 to 140°F) operating temperature
  • Interface(s):
    • 1x serial port (8-pin RJ45 connector)
      • with support for RS-232 standards
    • 1x 10/100/1000BaseT(X) Port (RJ45 connector)
      • with support for IEEE 802.3/3u/3ab/1X
  • Millisecond-level Client-based Turbo Roaming
  • MIMO future-proof technology
  • Integrated antenna and power isolation
  • 5 GHz DFS channel support
  • IP30 rated enclosure
  • Certifications: cULus, CE, FCC

What's in the Box

  • Moxa AWK-1131A-US WLAN AP/Client
  • DIN-rail kit
  • Plastic cap for RJ45 port
  • 2 x 2.4/5 GHz antenna
  • Quick installation guide
  • 5-year warranty card

The Moxa AWK-1131A-US WLAN AP/Client offers increased data transfer speeds through IEEE 802.11n support, with rates up to 300Mbps. The AWK-1131A-US is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The design integrates redundant DC inputs for a more reliable power supply. The AWK-1131A-US can operate on either the 2.4 or 5 GHz bands and has backwards-compatibility with existing 802.11a/b/g deployments to future-proof your wireless investments. The wireless add-on for the MX view network management utility visualizes the AWK's invisible wireless connections to ensure wall-to-wall Wi-Fi connectivity. The compact, IP30 rated aluminum housing design offers additional measures of protection to ensure uninterrupted network service.
