Moxa CP-168U 8-Port Universal PCI Serial Board

Name: Moxa CP-168U 8-Port Universal PCI Serial Board
Price: 220.69 USD
Availability: BackOrder

High speed 8-port universal PCI board with RS-232 standard, with low-profile form for compact computer systems. 3.3 and 5V bus compatibility.

$220.69

Part Number

CP-168U

Highlights...

CP-168U
By Moxa
FREE Shipping on orders of $1,000 or more
Usually ships in 3-5 weeks

Features

32-bit Universal PCI
Connector: DB62 female
700+ kbps data throughout
Baudrate: 50bps to 921.6 kbps max
Serial interface: RS-232
Ports: 8
FIFO: 128-bytes
Operating temperature: 0 to 55°C (32 to 131°F)
Compatible with 3.3/5 V PCI and PCI-X
Low-profile
Drivers provided for various OS:
- Windows, Linux, and UNIX
Built-in LEDs
Standard-issued management software
Certifications: CE, FCC

What's in the Box

CP-168U Serial Board
Quick installation guide
5 year warranty card

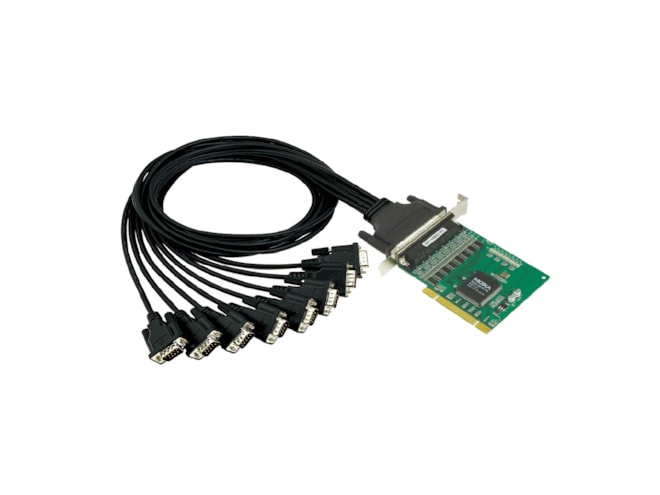

The Moxa CP-168U 8-Port Universal PCI Serial Board is a smart serial board built for POS and ATM applications, with free downloadable Driver files for integration with various operating systems including Windows, Linux, and UNIX. The 8 RS-232 standard ports each support up to a 921.6kbps baudrate, with full modem control signals to ensure expansive compatibility. The low-profile design enables the CP-168U to retrofit to any PCI and PCI-X slot. Suitable for both 3.3 and 5V buses, this design permits installation in most host servers.
