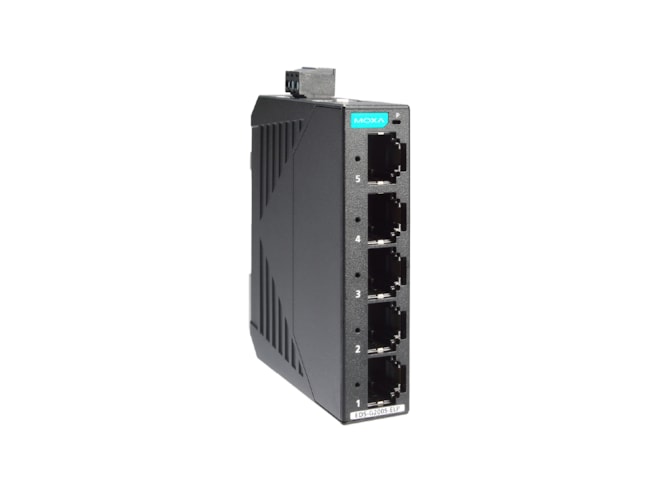

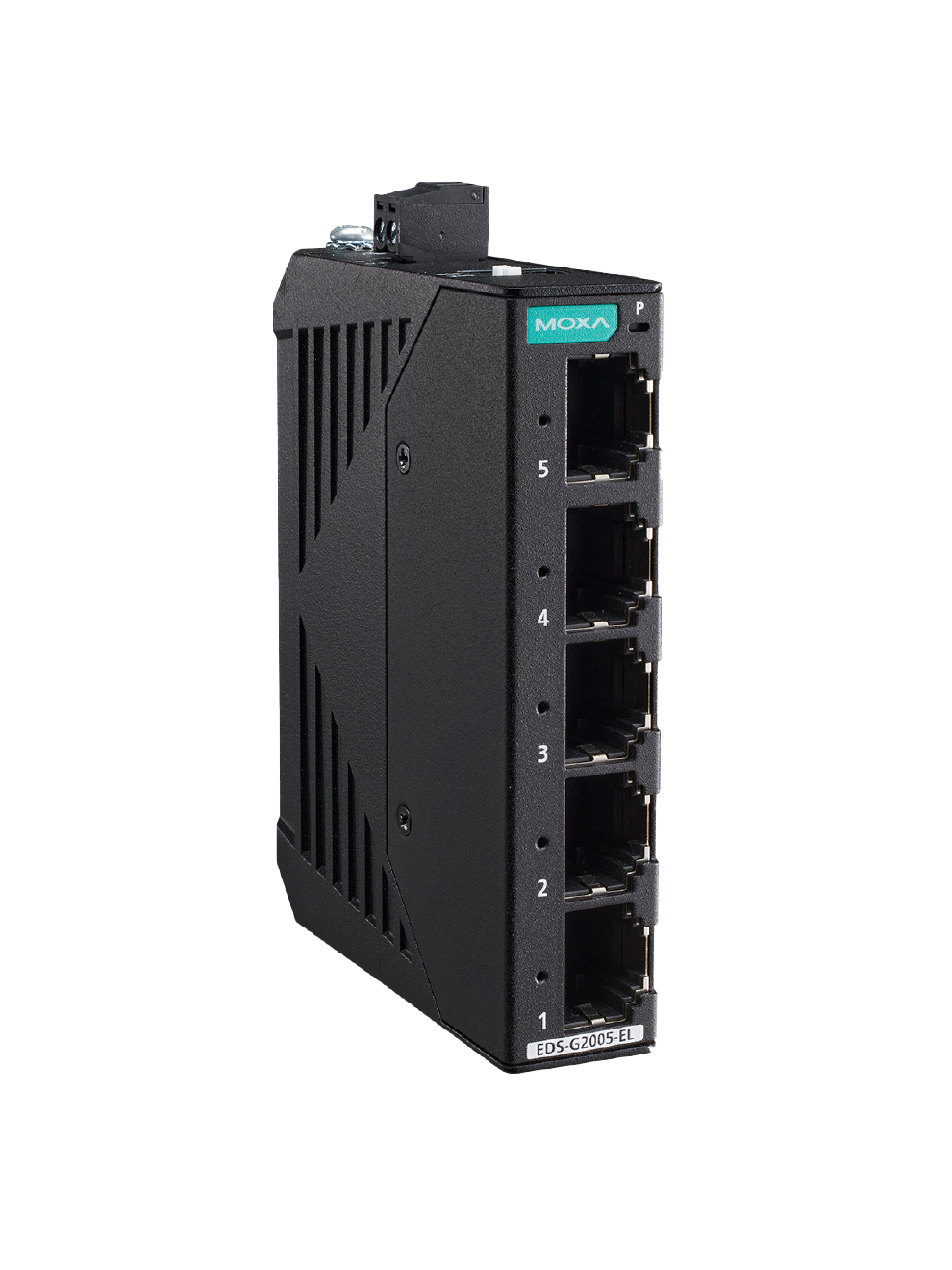

Moxa EDS-G2005 Series 5-Port Unmanaged Ethernet Switch
Entry-level unmanaged Gigabit switch with 5x 10/100/1000BaseT(X) ports with RJ45 connectors, up to -40 to 75°C operating temperature range, and IP40 rated housing.
Overview
Features
- Ethernet interface: QoS, BSP
- Ports: 5x 10/100/1000BaseT(X) (RJ45 connector)
- Standards: IEEE 802.3/3u/3x/3ab/1p
- Operating temperature(s):
- -10 to 60°C (14 to 140°F)
- -40 to 75°C (-40 to 167°F)
- Compact size
- IP40-rated plastic or metal housing
- DIN-rail mounting
- Input voltage: 12/24/48 VDC
- Certifications: CE, FCC, cULus
What's in the Box
- EDS-G2005 Series Ethernet Switch
- Quick installation guide
- 5 year warranty card
Description
The Moxa EDS-G2005 Series 5-Port Unmanaged Ethernet Switch has five full Gigabit 10/100/1000BaseT(X) copper ports and IP40 rated plastic or metal housing, making this unit ideal for simple industrial networking needs. The EDS-G2005 Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel for greater versatility across applications.
The EDS-G2005 Series is powered via a 12/24/48 VDC single input, has high-level electromagnetic compatibility, and resistance to electromagnetic interference. This switch has passed a 100% burn-in test, ensuring reliable functionality after deployment. The EDS-G2005 Series has an operating temperature ranges of -10 to 60°C or -40 to 75°C (with metal housing), with CE, FCC, and cULus certifications.
