Moxa EDS-2008 Series 8-Port Unmanaged Ethernet Switch

Entry-level unmanaged switch with 8x 10/100BaseT(X) ports with RJ45 connectors, IP40 rated plastic housing. PROFINET Class A compliant.

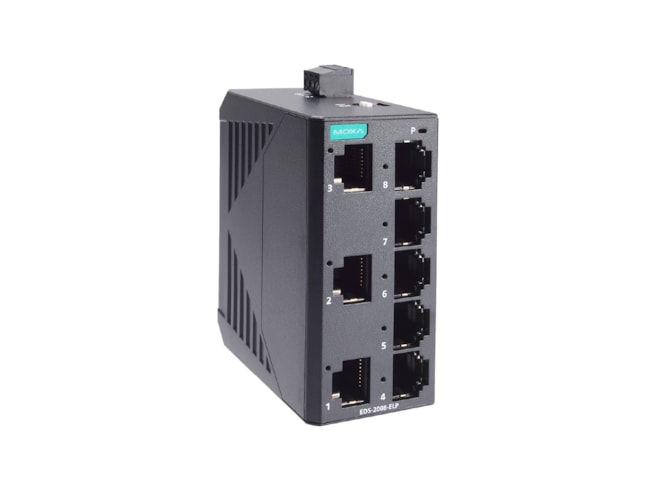

Moxa EDS-2008-ELP 8-Port Unmanaged Ethernet Switch

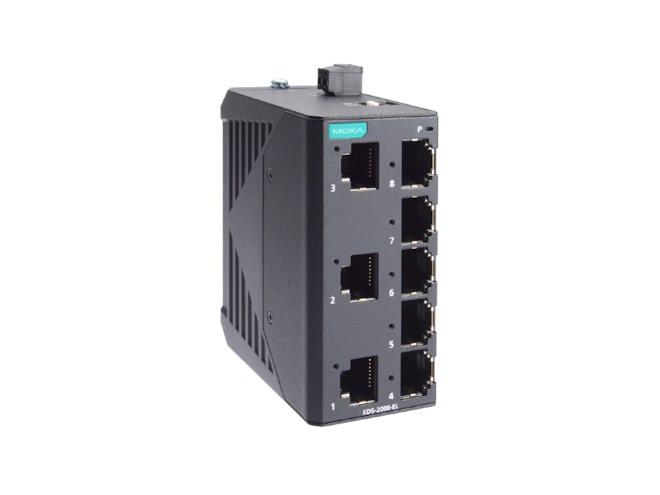

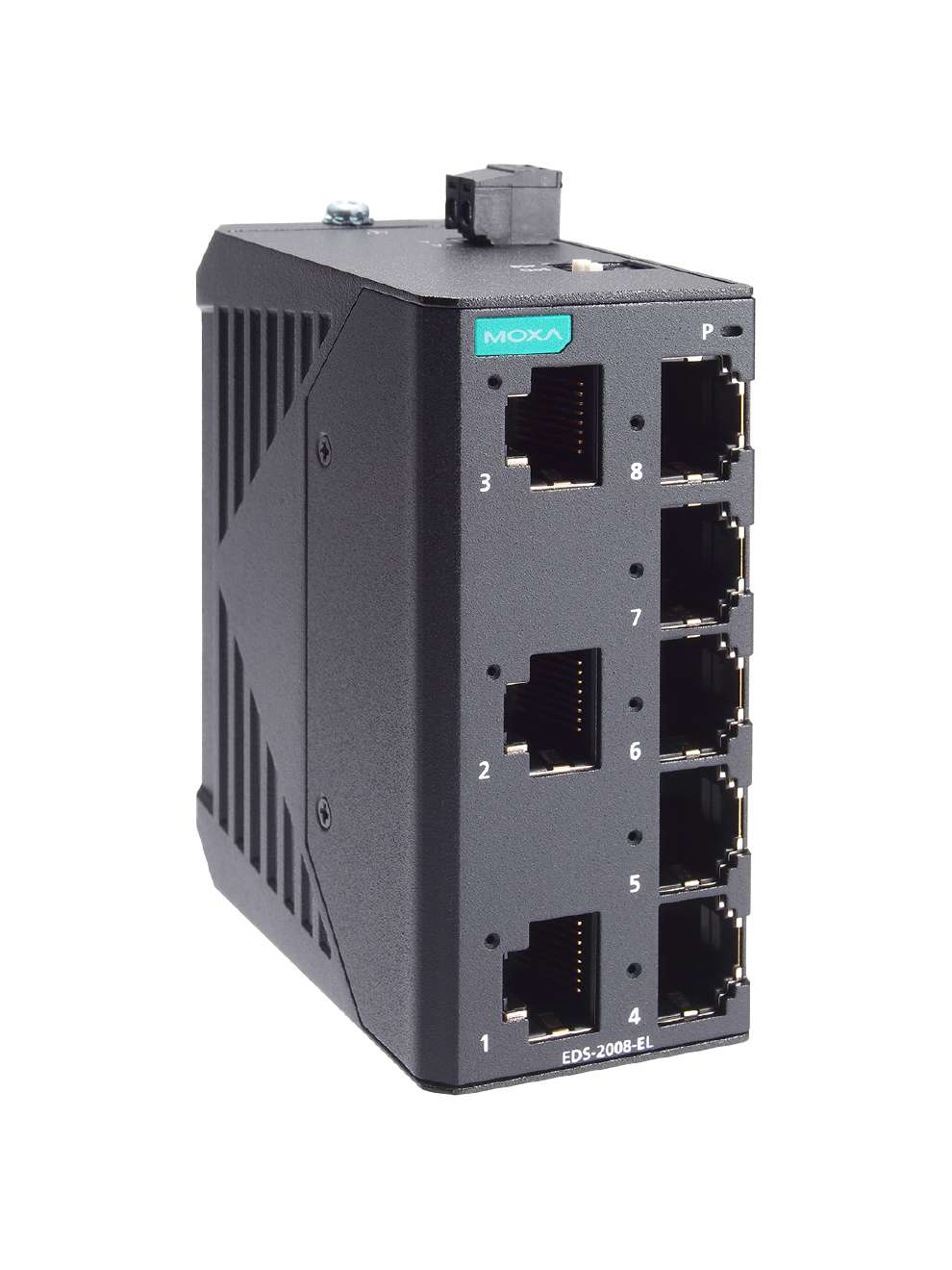

Moxa EDS-2008-EL 8-Port Unmanaged Ethernet Switch

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Starting Price: $128.25

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Moxa
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Usually ships in 3-5 weeks

Features

Ethernet interface: QoS, BSP
- Ports: 8x 10/100BaseT(X) (RJ45 connector)
- Standards: IEEE 802.3/1p/3u/3x
Operating temperature: -10 to 60°C (14 to 140°F)
Compact size
IP40-rated plastic or metal housing
DIN-rail mounting
Input voltage: 12/24/48 VDC
Compliant with PROFINET Conformance Class A
- Only for models with hardware version 2.0.0 or later
Certifications: CE, FCC, cULus

The Moxa EDS-2008 Series 8-Port Unmanaged Ethernet Switch has eight 10/100M copper ports and an IP40 rated plastic or metal housing, making this unit ideal for simple industrial networking needs. The EDS-2008 Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel for greater versatility across applications.

The EDS-2008 Series is powered via a 12/24/48 VDC single input, has high-level electromagnetic compatibility, and resistance to electromagnetic interference. This switch has passed a 100% burn-in test, ensuring reliable functionality after deployment. The EDS-2008 Series has an operating temperature range of -10 to 60°C, and is compliant with PROFINET Conformance Class A, making it compatible with PROFINET networks (for models with hardware version 2.0.0 or later).
