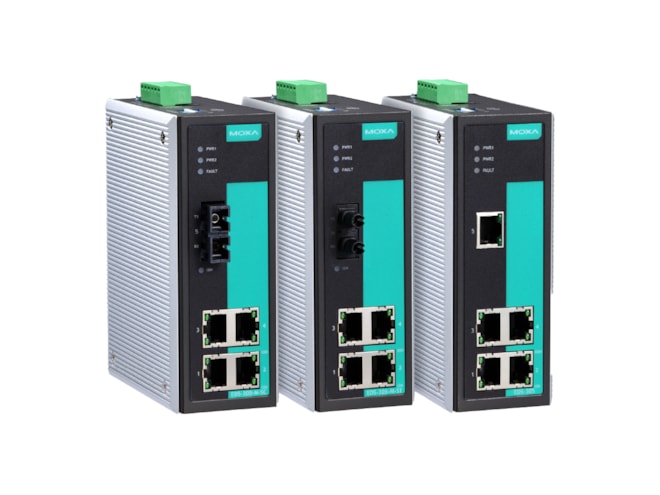

Moxa EDS-305 5-Port Unmanaged Ethernet Switch
IP30 metal housing, 0 to 60°C operating temperature range, 1x alarm relay output and 5x 10/100BaseT(X) ports for full/half-duplex, MDI/MDI-X autosensing.
Overview
Features
- Operating temperature range: 0 to 60°C (32 to 140°F)
- Ethernet interface:
- Ports: 5x 10/100BaseT(X) ports (RJ45 connector)
- Standards: supports IEEE 802.3/3u/3x
- Relay output for power failure and port break alarm
- Broadcast storm protection
- IP30 metal housing
- DIN-rail mounting
- 1 removable 6-contact terminal block(s)
- Packet buffer size: 384K
- Certifications: DNV, Ex, CE, FCC
What's in the Box
- EDS-305 Ethernet Switch
- 2x plastic caps for RJ45 ports
- Quick installation guide
- 5 year warranty card
Description
The Moxa EDS-305 5-Port Unmanaged Ethernet Switch is an industrial-grade Ethernet switch that supports IEEE 802.3 and IEEE 802.3u/x with full/half-duplex mode and MDI/MDI-X autosensing. The Ethernet interface features five 10/100BaseT(X) ports with RJ45 connectors, and one relay output channel as part of the power failure and port break alarm system. These switches have been designed for harsh industrial environments, including locations defined by Class I Div. 2, ATEX Zone 2 standards.
The EDS-305 comes with a standard operating temperature range of 0 to 60°C, and complies with FCC, UL, and CE standards. A 100% burn-in test is utilized with all models to ensure reliable performance in industrial automation control applications. The EDS-305 is built for mounting on DIN-rails or in distribution boxes.
