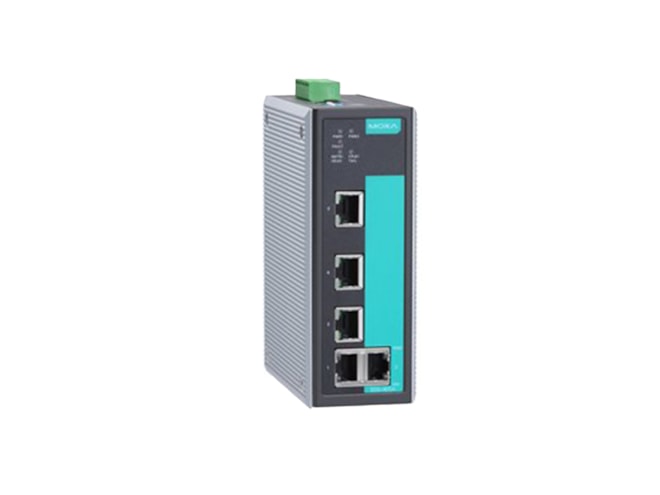

Moxa EDS-405A 5-Port Managed Ethernet Switch
Entry-level managed Ethernet switch with IP30 metal housing, -10 to 60°C operating temperature, 5x 10/100BaseT(X) ports, and extensive network redundancy features.
- EDS-405A
Overview
Features
- Ethernet interface:
- Ports: 5x 10/100BaseT(X) ports with RJ45 connectors
- Standards: IEEE 802.3/3u/3x and 802.1D/1p/1Q/1w
- Serial interface:
- Console port: 10-pin RJ45 connector
- Standard: RS-232
- Operating temperature: -10 to 60°C (14 to 140°F)
- Turbo Ring, Turbo Chain, and RSTP/STP for network redundancy
- Turbo Chain: recovery time < 20 ms @ 250 switches
- IGMP Snooping, QoS, IEEE 802.1Q VLAN
- port-based VLAN supported
- Network management:
- Via web browser, CLI, Telnet/serial console, Windows, and ABC-01
- PROFINET or EtherNet/IP enabled (PN or EIP models)
- Supports MXstudio for visualized network management
- IP30 metal housing
- Certifications: DNV, Ex, CE, FCC
What's in the Box
- EDS-405A Ethernet Switch
- RJ45 to DB9 console cable
- 2 plastic caps for RJ45 port
- Product certificate of quality inspection, Simplified Chinese
- Quick installation guide
- 5 year warranty card
Description
The EDS-405A 5-Port Managed Ethernet Switch is designed with industrial-level applications in mind. The Ethernet interface includes five 10/100BaseT(X) ports with RJ45 connectors, and each unit is built out with useful management functions such as Turbo Ring (network redundancy), Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The Turbo Ring is easily setup via the web-based interface or via the DIP switches located on the top panel of each unit. The metal housing has an IP30 rating, -10 to 60°C operating temperature range, and includes ATEX, Railway, NEMA TS2, and DNV maritime certifications.
