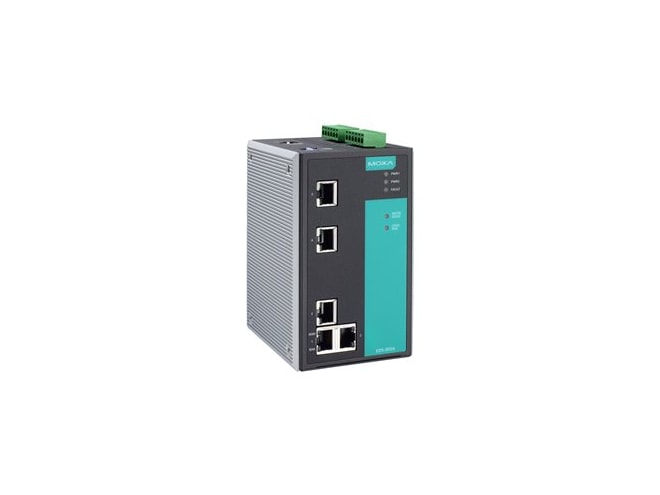

Moxa EDS-505A Series 5-Port Managed Ethernet Switch
5x Ethernet ports, 2x alarm relays and 2x digital inputs. IP30 metal housing, -10 to 60°C operating temperatures, and extensive network redundancy features.
$732.68
Part Number
- EDS-505A
Highlights...
Overview
Features
- Ethernet interface:
- Ports: 5x 10/100BaseT(X) ports with RJ45 connectors
- Standards: IEEE 802.3/3u/3x/3ad and 802.1s/1p/1Q/1w/1X/1D-2004
- Alarm relay outputs: 2
- Digital inputs: 2
- Operating temperature: -10 to 60°C (14 to 140°F)
- Turbo Ring, Turbo Chain, and RSTP/STP/MSTP for network redundancy
- Turbo Chain: recovery time < 20 ms
- IGMP Snooping, QoS, IEEE 802.1Q VLAN
- port-based VLAN supported
- Network management:
- Via web browser, CLI, Telnet/serial console, Windows, and ABC-01
- PROFINET or EtherNet/IP enabled (PN or EIP models)
- Supports MXstudio for visualized network management
What's in the Box
- EDS-505A Ethernet Switch
- DB9 female to RJ45 10-pn cable
- 4 plastic caps for RJ45 port
- Quick installation guide
- Product certificates of quality inspection
- Product notice
Description
The EDS-505A 5-Port Managed Ethernet Switch is designed for industrial-level applications, with five 10/100BaseT(X) Ethernet ports with RJ45 connectors, 2 alarm relay output and 2 digital input channels. Integrated network redundancy technology such as Turbo Ring, Turbo Chain, and STP/MSTP/RSTP ensure a recovery time of less than 20ms. Each unit is built out with additional useful management functions such as IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The metal housing has an IP30 rating, up to -10 to 60°C operating temperature ranges, and includes ATEX, Railway, NEMA TS2, and DNV maritime certifications.
