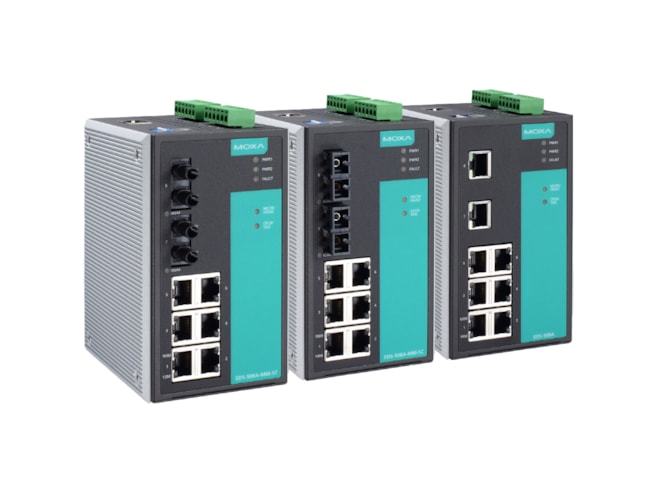

Moxa EDS-508A Series 8-Port Managed Ethernet Switch

Name: Moxa EDS-508A Series 8-Port Managed Ethernet Switch
Price: 903.88 USD
Availability: BackOrder

8x Ethernet ports, 2x alarm relays and 2x digital inputs. IP30 metal housing, -10 to 60°C operating temperatures, and extensive network redundancy features.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Starting Price: $903.88

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Moxa
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Usually ships in 3-5 weeks

Features

Ethernet interface:
- Ports:
  - 8x 10/100BaseT(X) ports with RJ45 connectors
  - 6X 10/100BaseT(X) ports (RJ45) and 2x 100BaseFX ports with multi-mode SC connector
- Standards: IEEE 802.3/3u/3x/3ad and 802.1s/1p/1Q/1w/1X/1D-2004
Alarm relay outputs: 2
Digital inputs: 2
Serial interface: RS-232 console port
Operating temperature: -10 to 60°C (14 to 140°F)
Turbo Ring, Turbo Chain, and RSTP/STP/MSTP for network redundancy
- Turbo Chain: recovery time < 20 ms
IGMP Snooping, QoS, IEEE 802.1Q VLAN
- port-based VLAN supported
Network management:
- Via web browser, CLI, Telnet/serial console, Windows, and ABC-01
PROFINET compatible
Supports MXstudio for visualized network management

What's in the Box

EDS-508A Series Ethernet Switch
DB9 female to RJ45 10-pn cable
4 plastic caps for RJ45 port
2 pastic caps for SC fiber port (-SC models)
Quick installation guide
Product certificates of quality inspection
Product notice

The EDS-508A 8-Port Managed Ethernet Switch is designed for industrial-level applications, with eight 10/100BaseT(X) Ethernet ports with RJ45 connectors, 2 alarm relay output and 2 digital input channels. A port configuration of 6x 10/100BaseT(X) with RJ45 connectors and 2x 100BaseFX with multi-mode SC connectors is also available. Integrated network redundancy technology such as Turbo Ring, Turbo Chain, and STP/MSTP/RSTP ensure a recovery time of less than 20ms. Each unit is built out with additional useful management functions such as IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The metal housing has an IP30 rating, a -10 to 60°C operating temperature range, and includes ATEX, Railway, NEMA TS2, and DNV maritime certifications.
