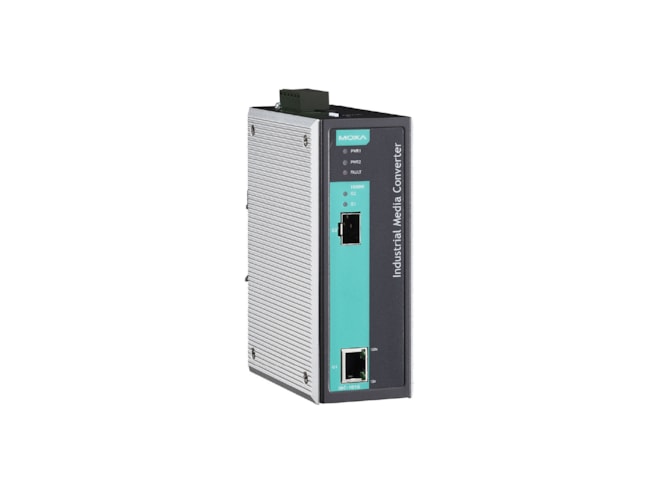

Moxa IMC-101G Ethernet-to-Fiber Converter

Name: Moxa IMC-101G Ethernet-to-Fiber Converter
Price: 706.76 USD
Availability: BackOrder

Industrial Gigabit converter with 10/100/1000BaseT(X) port with RJ45 connector and 1000Mbps fiber slot with SFP connector. 0 to 60°C operating temperature range.

$706.76

Part Number

IMC-101G

Highlights...

IMC-101G
By Moxa
FREE Shipping on orders of $1,000 or more
Usually ships in 3-5 weeks

Features

Ethernet interface:
- 1x 10/100BaseT(X) port with RJ45 connector
- 1x 1000Mbps fiber slot with SFP connector
Operating temperature: 0 to 60°C (32 to 140°F)
1.5kV magnetic isolation protection
Link Fault Pass-Through (LFPT)
Alarm relay output
Redundant power inputs
DIN-rail mounting
Input voltage: 12 to 45VDC
Certifications: cULus, CE, FCC

What's in the Box

IMC-101G Converter
Quick installation guide
5 year warranty card

The Moxa IMC-101G Ethernet-to-Fiber Converter is designed for reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX Gigabit media conversion in harsh industrial environments. This configuration has a UL/cUL certification of Class I Div 2, and operating temperature range of 0 to 60°C. The IMC-101G comes with an inbuilt alarm relay output to help prevent damage and loss. All models undergo a 100% burn-in test to ensure reliable operation after deployment. Extended operating temperature ranges and IECEx-certified models are available upon further inquiry.
