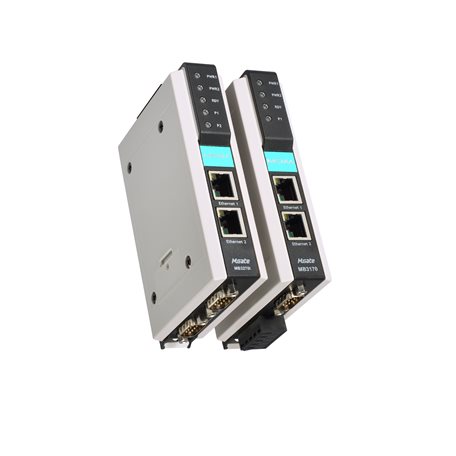

Moxa MGate MB3170 / MB3270 Series Ethernet Gateway

1 and 2-port advanced serial-to-Ethernet Modbus gateways, up to -40 to 75°C operating temperature range, with DNV, ATEX and IECEx certifcations.

Moxa MGate MB3170 / MB3270 Series Ethernet Gateway
Moxa MGate MB3170 / MB3270 Series Ethernet Gateway

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Starting Price: $336.55

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Moxa
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Usually ships in 3-5 weeks

Features

Ethernet interface:
- Ports: 2x 10/100BaseT(X) with RJ45 connector
  - (1x IP, Ethernet cascade)
Industrial protocols:
- Modbus TCP Client (Master)
- Modbus TCP Server (Slave)
- 32 max Modbus Client/Server connections
- 31 or 62 max Modbus RTU/ASCII slaves
Serial interface: RS-232/422/485 standards
- Ports:
  - M3170: 1x serial port (DB9)
  - MB3270: 2x serial ports (DB9)
- 2kV isolation available (-I models)
Operating temperature(s):
- 0 to 60°C (32 to 140°F)
- -40 to 75°C (-40 to 167°F) (-T models)
Embedded Modbus traffic monitoring
Priority control for urgent commands
Auto-device routing
Redundant power inputs
IP30 plastic housing
Certifications: CE, FCC, DNV, IECEx, ATEX

What's in the Box

MGate MB3170/MB3270 Series Gateway
Quick installation guide
5 year warranty card

The Moxa MGate MB3170 / MB3270 Series Ethernet Gateway host one or two serial ports, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. These gateways provide serial-to-Ethernet communication as well as master/slave serial-to-serial communications. This series also support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 Series gateways can be accessed by up to 32 TCP master/clients, or connect to up to 32 TCP slave/servers. Serial port routing can be controlled by IP address, TCP port number, or ID mapping. Routing via TCP port and IP address allows access for up to 4 TCP clients/masters (MB3270 models), whereas ID mapping provides access to as many as 32 TCP clients/masters (MB3170/MB3270). An integrated priority control function allows urgent commands to obtain an immediate response.

Moxa’s Auto-Device Routing function helps to streamline the normally extensive process of configuring numerous Modbus devices. It's takes a single mouse click to setup a slave ID with routing table, and configure Modbus gateways to automatically detect Modbus requests from a supervisory control and data acquisition (SCADA) system.

The MB3170 and MB3270 Series provide streamlined functionality that is paired with a durable DIN-rail mount design. The plastic housing is IP30 rated, has a 0 to 60°C standard operating temperature range (-40 to 75°C for -T models), DNV, ATEX and IECEx hazardous area certifications.
