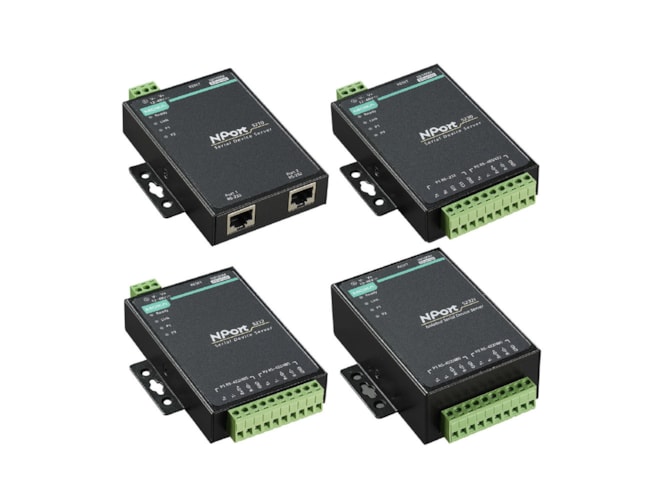

Moxa NPort 5200 Series Serial Device Server

Name: Moxa NPort 5200 Series Serial Device Server
Price: 208.65 USD
Availability: BackOrder

2-port RS-232/422/485 servers with Windows, Linux, and macOS drivers. 230.4kbps max baudrate, 0 to 55°C operating temperature range.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Starting Price: $208.65

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Moxa
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Usually ships in 3-5 weeks

Features

Ethernet interface:
- Port: 1x 10/100BaseT(X) port, RJ45
- Real COM and TTY drivers for Windows, Linux, and macOS
Serial interface:
- Standard: RS-232/422/485
- Port: 2x with 8-pin RJ45 connector
Operation modes:
- Disabled
- Ethernet Modem
- Pair Connection
- Real COM
- Reverse Telnet
- TCP Client/Server
- UDP
Baudrate: 110bps to 230.4kbps
Operating temperature(s): 0 to 55°C (32 to 131°F)
SNMP MIB-II for network management
Installation: desktop or wall mount
- DIN-rail kit sold separately
Certifications: DNV, CE, FCC, cULus

The Moxa NPort 5200 Series Serial Device Server is is designed for quick and user-friendly network enablement of serial devices. The compact size makes this unit suitable for connecting RS-232/422/485 serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, direct access to serial devices from anywhere in a network. The NPort 5200 Series has standard TCP/IP protocols and choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY Port.

NPort 5200 Series servers can operate in TCP Server/Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets). Real COM/TTY drivers are provided with each unit, allowing for instant and seamless integration into a TCP/IP network, including legacy Windows or Linux operating systems.

All units are encased in compact metal housing with a standard operating temperature of 0 to 55°C, and meet DNV, CE, FCC, and cULus standards.
