Overview

Features

  • Ethernet interface:
    • Port: 2x 10/100BaseT(X) port, RJ45 (Supports 2 IP addresses)
  • Serial interface:
    • Standards: RS-232/422/485
    • Ports:
      • 5150A: 1x with DB9 connector for RS-232, terminal block for RS-422/485
      • 5250A/5450A: 2x with DB9 male for RS-232/422/485
  • Operation modes:
    • Real COM
    • TCP Client/Server
    • UDP
    • Ethernet Modem
    • Reverse Telnet
    • Pair Connection
  • Baudrate: 50bps to 921.6kbps
  • Operating temperature: 0 to 60°C (32 to 140°F)
  • Warnings and alerts by relay output and email
  • Screw-type terminal blocks
  • Enhanced surge protection for serial, LAN, and power
  • Redundant power inputs
  • IP30 plastic housing
  • Certifications: CE, cULus, ATEX, IECEx

Description

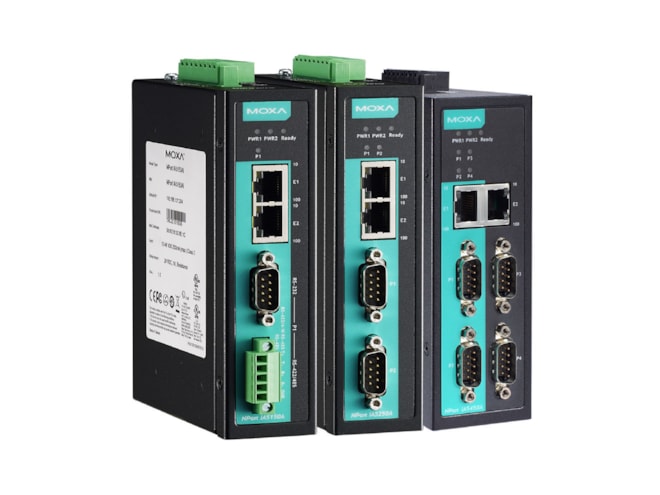

Moxa NPort IA5000A Series Serial Device Server provides durable, reliable serial-to-Ethernet connection for industrial automation applications. This server offers Ethernet connection to any serial device, with Real Com and TTY Drivers provided to ensure compatibility with existing systems. Port operation modes are various, including but not limited to TCP Server, TCP Client, and UDP. This makes the NPort IA5000A Series ideal for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays.

Each model hosts two 10/100BaseT(X) ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort IA device server or an Ethernet device. Redundant power inputs mean that simultaneous DC power sources can be connected, with the failure of one automatically prompting full take over by the second for nonstop service. Each unit includes advanced surge protection for serial, LAN and power lines in compliance with IEC 61000-4-5 standards. This protects the server against voltage spikes and electrical interference such as what is found in oil, gas, and power automation industries.

The inbuilt relay output can be used as part of an alert system including triggered-emails for problems with Ethernet links and power inputs, or when DCD or DSR signals change. These functions are valuable tools that enable maintenance engineers to react promptly to emergency situations.

All models come with compact, IP30 rated housing that is DIN-rail mountable. Standard units have an operating temperature range of 0 to 60°C, with hazardous area approvals.
