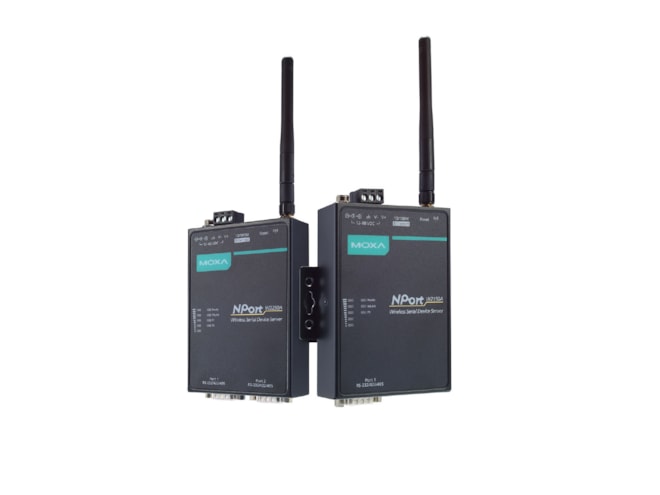

Moxa NPort W2150A/W2250A Series Wireless Device Server

1- and 2-port serial-to-WiFi (802.11a/b/g/n) device servers with wireless client with 0 to 55°C operating temperature range.

Features

  • Ethernet interface:
    • Port: 1x 10/100BaseT(X) port, RJ45
  • Serial interface:
    • Standards: RS-232/422/485
    • Ports:
      • 2150A: 1x with DB9 male for RS-232/422/485
      • 2250A: 2x with DB9 male for RS-232/422/485
  • Operation modes:
    • Real COM
    • TCP Client/Server
    • UDP
    • Ethernet Modem
    • Reverse Telnet
    • Pair Connection
    • Disabled
  • WLAN interface:
    • Standards: 802.11a/b/g/n
  • Baudrate: 50bps to 921.6kbps
  • Operating temperature: 0 to 55°C (32 to 131°F)
  • Enhanced surge protection for serial, LAN, and power
  • Redundant power inputs
  • Certifications: CE, FCC

The Moxa NPort W2150A/W2250A Series Wireless Device Server is designed to connect serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. The user's existing communications software will be able to access the serial devices from anywhere over a wireless LAN. In Infrastructure Mode or Ad-Hoc Mode, the NPort W2150A and NPort W2250A can connect to Wi-Fi networks at offices and factories to allow users to roam between access points, providing a reliable connection solution for devices that are frequently moved from place to place.
