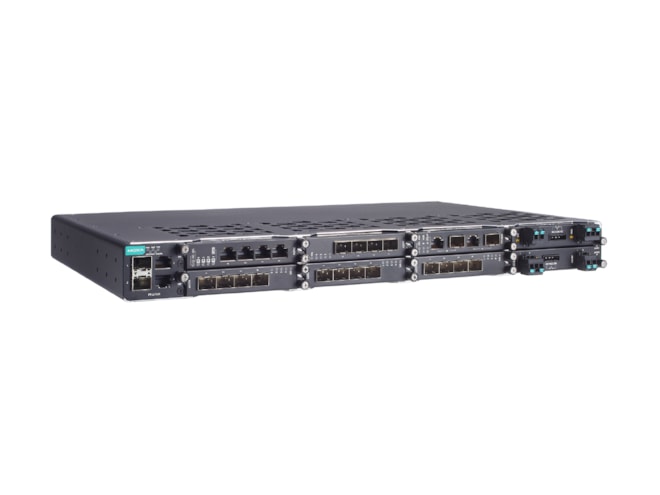

Moxa PT-G7728 Modular Managed Ethernet Switch
Layer 2 Gigabit switch with 2x SFP, 2x T(X), 6x Ethernet module slots and 2x power module slots. IP30 rated housing, with -40 to 85°C operating temperature.
Overview
Features
- Ethernet Interface:
- Ports: 2x 10/100/1000BaseT(X) (RJ45), 2x 100/1000BaseSFP Ports
- Module slots: 6x slots for LM-700H Ethernet, PoE & PRP/HSR modules
- Standards: IEEE 802.3/3u/3ab/3z/3ad/3x & IEEE 802.1D-2004/1w/1p/1Q/1X
- Serial interface: RS-232 standard console port (RJ45)
- Operating temperature range: -40 to 85°C (-40 to 185°F)
- Hot-swappable interface and power modules for continuous operation
- IEEE 1588 hardware time stamp supported
- Supports IEEE C37.238 & IEC 61850-9-4 power profiles
- GOOSE Check for easy troubleshooting
- Built-in MMS server for power SCADA
- IP30 rated housing
- Certifications: EN 50121-4, IEC 62439-3 (PRP/HSR), IEC 61850-3, cULus, CE
What's in the Box
- PT-G7728 Ethernet Switch
- USB cable (Type A male to Micro USB Type B)
- 2x caps for Micro-B USB port
- Metal cap for ABC-02 USB storage port
- 2x rack mounting ears
- 2x plastic caps for SFP slots
- Quick installation guide
- 5 year warranty card
- Substance disclosure table
- Product certificates of quality inspection
- Product notice
Description
The Moxa PT-G7728 Modular Managed Ethernet Switch is a Layer 2 model that hosts two T(X) ports, two SFP slots, six interface module slots, and two power module slots. This base port configuration ensures sufficient flexibility for a variety of applications, with up to 28 Gigabit ports possible depending on additional modules integrated. The PT-G7728 is designed for evolving network requirements, featuring a hot-swappable design which permits the user to add, remove or changeout modules while the switch is active. RJ45, SFP, PoE and PRP/HSR interface modules can be integrated with this unit, as well as 24 to 48VDC or 110 to 220VAC/VDC power units. This Ethernet switch also complies with the IEC 61850-3 Edition 2 Class 2 standard, ensuring reliable data transmission in the face of high levels of EMI, shock, or vibration.
The PT-G7728 is a rack-mountable design with an IP30 rated housing, and wide operating temperature range of -40 to 85°C. SFP modules, modules from the LM-7000H Module Series, and/or modules from the PWR Power Module Series need to be purchased separately for use with this product.
