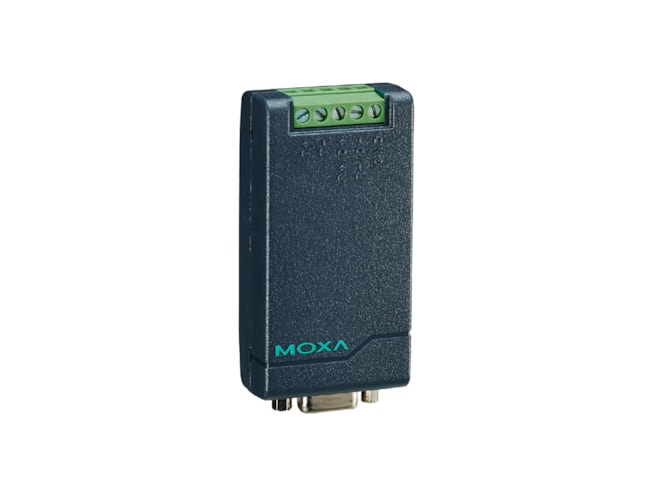

Moxa TCC-80 RS-232 to RS-422/485 Converter
Industrial port-powered RS-232 to RS-422/485 converter. 115.2kbps max baudrate, IP30 rated housing with 0 to 60°C operating temperature range.
- TCC-80
Overview
Features
- Serial interface:
- Standards:
- Converts RS-422, and both 2- or 4-wire RS-485
- Connector: terminal block
- Ports: 2
- Standards:
- Baudrate: 300bps to 115.2kbps
- automatic baudrate detection
- Operating temperature: 0 to 60°C (32 to 140°F)
- RS-485 automatic data direction control
- Built-in 120-ohm termination resistors
- LED port power indicator
- IP30 rated housing
- DIN-rail and wall mounting
- Certifications: CE, FCC, cULus
What's in the Box
- TCC-80 Converter
- USB power cord, 50cm
- Quick installation guide
- 5 year warranty card
Description
The Moxa TCC-80 TS-232 to RS-422/485 Converter expands networking capability via complete signal conversion without the requirement of an external power source. This model supports half-duplex 2-wire RS-485 and full-duplex RS-422/485, both of which can be converted between RS-232's TxD and RxD lines. Automatic data direction control is provided for RS-485, with the RS-485 driver enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This technology means that programming is not required to control the transmission direction of the RS-485 signal. The TCC-80's RS-232 port has a DB9 female socket that connects directly to a host PC, with power drawn via the TxD line (5 to 12VDC external power source compatible if necessary). Each unit features IP30 rated housing, and a 0 to 60°C operating temperature range.
