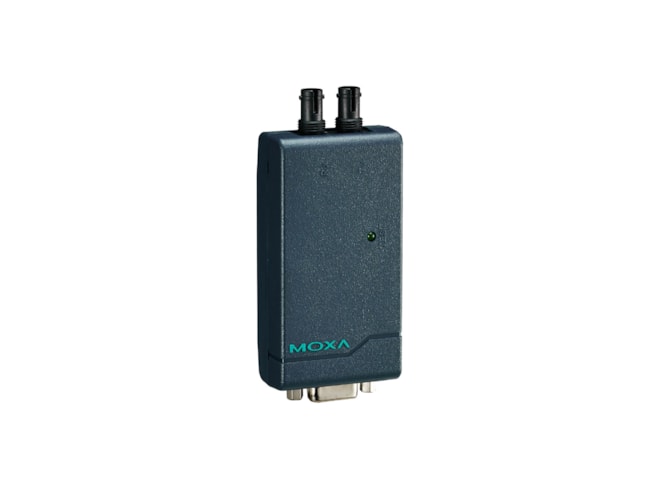

Moxa TCF-90-M-ST RS-232 to Fiber Converter

Port-powered multi-mode RS-232 to fiber converter with ST connector. 115.2kbps max baudrate, IP30 rated plastic housing, and 0 to 60°C range.

$260.81
Part Number
  • TCF-90-M-ST
Highlights...

Features

  • Serial interface:
    • Standards:
      • Extends RS-232 transmission up to 5 km
    • Connector: 7-pin terminal block
    • Ports: 2
  • Baudrate: 300bps to 115.2kbps
  • Operating temperature: 0 to 60°C (32 to 140°F)
  • External power or power over serial
  • Electrical and chemical protections
  • Reduced signal interference
  • IP30 rated plastic housing
  • Desktop installation
  • Certifications: CE, FCC, cULus

What's in the Box

  • TCF-90-M-ST Converter
  • USB power cord, 50cm
  • Quick installation guide
  • 5 year warranty

The Moxa TCF-90-M-ST RS-232 to Fiber Converter is equipped to transmit RS-232 signals over optical fiber. This unit expands networking capability by extending signal transmission up to 5km, with power derived from either the serial port or an external power source. A pair of these converters can connect two RS-232 devices via optical fiber in full-duplex mode, thereby isolating the transmitted data from spiking ground potentials, ground loops, electrical noise, electromagnetic and RF radiation. Each unit features IP30 rated plastic housing, and a 0 to 60°C operating temperature range.
