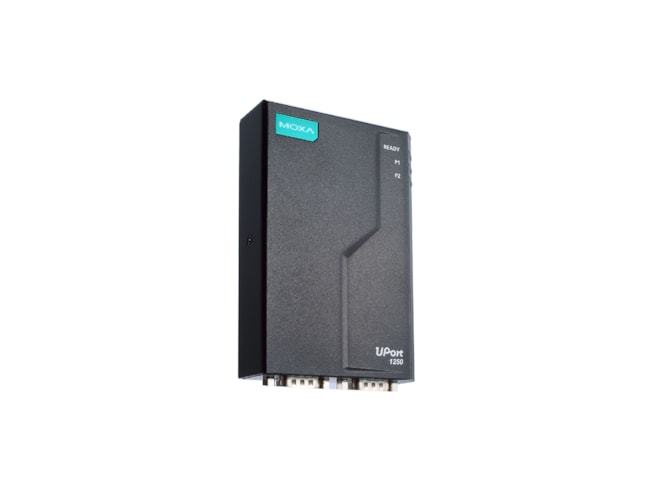

Moxa UPort 1200-G2 Series USB-to-Serial Converter
2-port RS-232/422/485 USB-to-serial converter. 921.6kbps max baudrate, USB 3.2 SuperSpeed, and -40 to 75°C operating temperature range.
Overview
Features
- USB interface:
- Standards: USB 3.2 Gen 1, USB 1.1/2.0 compliant
- Connector: Type B
- Speed: 5Gbps, 480Mbps, 12Mbps
- Serial interface:
- Standards: RS-232/422/485
- Connector: DB9 male
- Ports: 2
- Baudrate: 50bps to 921.6kbps
- FIFO cache: 512 bytes
- Operating temperature(s):
- 0 to 60°C (32 to 140°F)
- -40 to 75°C (-40 to 167°F) [-T models]
- Optical isolation for -I models
- Drivers provided for Windows, macOS and Linux
- Double-sided LEDs for indicating power and Tx/Rx activity
- Latching USB cable design
- IP20 rated metal housing
- Certifications: CE, FCC, cULus
What's in the Box
- UPort 1200-G2 Series Converter
- USB 3.2 Gen 1 cable with latch and screw
- 4x rubber stands
- Quick installation guide
- 5 year warranty card
Description
The Moxa UPort 1200/1400/1600 Series USB-to-Serial Converter is ideal for use with laptop or workstation computers that do not have a serial port. They are essential for connecting different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. The UPort 1200-G2 Series converts from USB to RS-232/422/RS-485, with USB 3.2 SuperSpeed capability, and optional 2kV optical isolation. Each unit comes with a USB cable that has a latch and screw lock for a more secure connection between the UPort and host computer. This series of converters is compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications. The metal housing is IP20 rated, with a standard operating temperature range of 0 to 60°C (-40 to 75°C for -T models).
