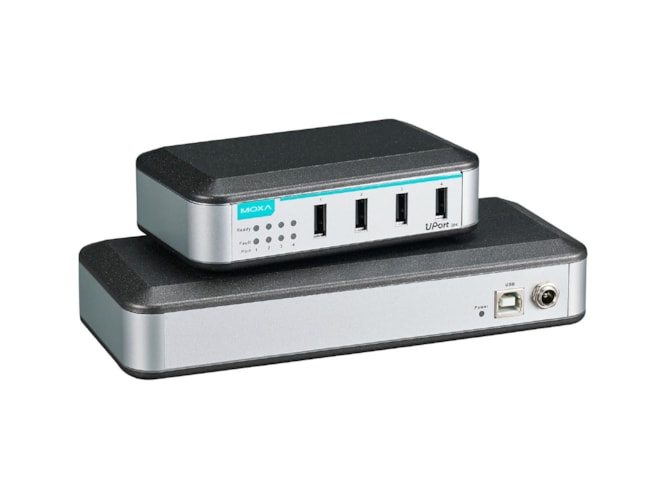

Moxa UPort 204 USB Hub

4-port entry-level USB 2.0 hub. Up to 480Mbps speed, ESD Level 4 protection, USB-IF certification and 0 to 60°C operating temperature range.

$184.84
Part Number
  • UPort 204
Highlights...

Features

  • USB interface:
    • Standards: USB 1.1/2.0 compliant
    • Connector: Type B
    • Ports: 4 (500mA power per port)
    • Speed: 12Mbps, 480Mbps
  • 15 kV ESD Level 4 protection for all USB ports
  • Operating temperature: 0 to 60°C (32 to 140°F)
  • Chooses bus power or external power
  • Input voltage: 12 to 40VDC
  • Level 4 ESD protection
  • Comprehensive diagnostic LEDs
  • Polycarbonate housing
  • Certifications: CE, FCC, cULus, USB-IF

What's in the Box

  • UPort 204 Hub
  • USB Type A male to Type B male cable
  • Power adapter, universal
  • Quick installation guide
  • Substance disclosure table
  • 5 year warranty card

The Moxa UPort 204 USB Hub is a USB 2.0 compliant unit that expands one USB port into four. These hubs provide USB 2.0 Hi-Speed 480Mbps data transmission rates through each port, even for heavy-load applications. The UPort 204 has received the USB-IF (USB Implementers Forum) Hi-Speed certification and features a plug-and-play design. 500mA of power per port ensures USB devices function properly. A 12 to 40VDC input voltage range makes this model ideal for mobile applications. The UPort 204 provides Level 4 (contact 8 kV, air 15 kV) protection against electrostatic discharge (ESD).
