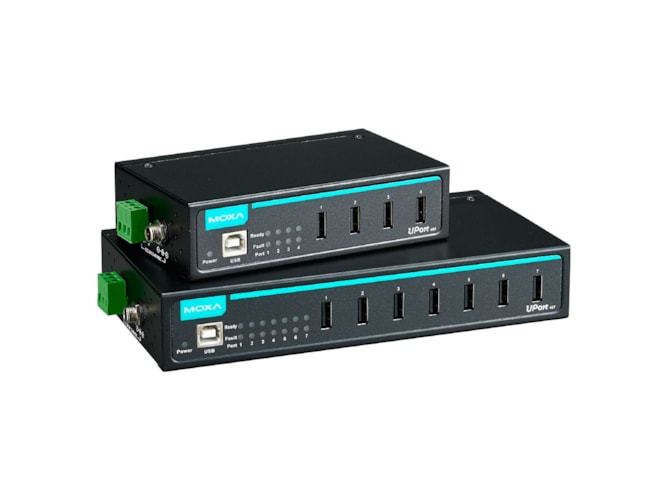

Moxa UPort 404/407 Series USB Hub

4- and 7-port industrial USB 2.0 hub. Up to 480Mbps speed, ESD Level 4 protection, USB-IF certification and 0 to 60°C operating temperature range. Dual power inputs.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Starting Price: $265.36
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • USB interface:
    • Standards: USB 1.1/2.0 compliant
    • Connector: Type B
    • Ports: 4 (500mA power per port)
    • Speed: 12Mbps, 480Mbps
  • 15 kV ESD Level 4 protection for all USB ports
  • Operating temperature: 0 to 60°C (32 to 140°F)
  • Level 4 ESD protection
  • Comprehensive diagnostic LEDs
  • Dual power inputs (power jack and terminal block)
  • Chooses bus power or external power (UPort 404)
  • Input voltage: 12 to 40VDC
  • Aluminum housing
  • Certifications: CE, FCC, cULus, USB-IF

What's in the Box

  • UPort 404/407 Series Hub
  • Wall-mounting kit
  • USB Type A male to Type B male cable
  • Power adapter, universal
  • Quick installation guide
  • Substance disclosure table
  • 5 year warranty card

The Moxa UPort 404/407 Series USB Hub is s USB 2.0 compliant model that expands one USB port into four or seven, respectively. These hubs provide USB 2.0 Hi-Speed 480Mbps data transmission rates through each port, even for heavy-load applications. The UPort 404/407 Series has received the USB-IF (USB Implementers Forum) Hi-Speed certification and features a plug-and-play design. 500mA of power per port ensures USB devices function properly. A 12 to 40VDC input voltage range makes this model ideal for mobile applications. The UPort 404/407 Series provides Level 4 (contact 8 kV, air 15 kV) protection against electrostatic discharge (ESD).
