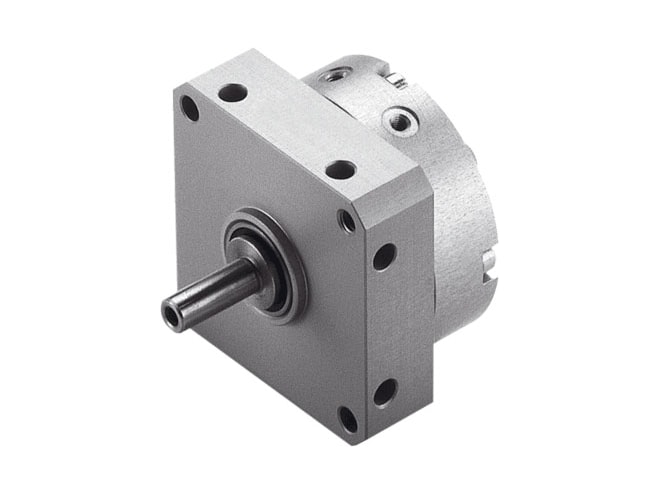

Festo DSM-B Series Semi-rotary Drive

High-precision, double-acting with three cushion options and optional tandem vane design available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 12 to 63mm size
  • 240 to 270° nominal swivel angle
  • Spigot or flanged shaft
  • Elastic cushioning rings/plates on both sides
  • Available with tandem rotary vanes
    • Offers torques of up to 80Nm
    • Infinitely adjustable swivel angle
  • Position sensing for or proximity sensor is available

The Festo DSM-B Series Semi-rotary Drive is a high-precision, double-acting rotary vane actuator with metal stops. It is available with a spigot or flanged shaft and with optional tandem rotary vanes. Polyurethane ensures a long service life for the rotary vane and sealing system and precision at the end positions is easily adjusted using the cushioning components. The mechanical gearing between the stop element and the semi-rotary drive prevents movement of the stop system under load.
