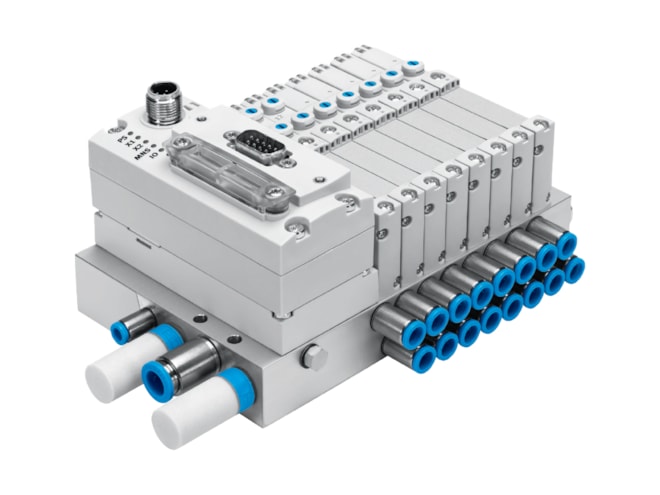

Festo VTUG Series Valve Manifold

Name: Festo VTUG Series Valve Manifold
Availability: BackOrder

Fixed grid valve manifold with piston gate valve. Pilot-controlled with electrical actuation, for compressed air mediums. Standard flow rate up to 1150 l/min.

Call for pricing

Part Number

573606

Highlights...

573606
By Festo
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Call for availability

Features

Fixed grid design with piston gate valve
Sealing principle: soft
Control type: pilot
Medium: Compressed air per ISO 8573-1:2010 [7:4:4]
Standard nominal flow rate: 130 to 1150 l/min
Medium temperature range: -5 to 60°
Electrical actuation offerings:
- AP interface
- Individual connection
- Fieldbus
- I-Port
- IO-Link
- Multi-pin
Valve function offerings:
- 2x3/2, closed, open, or open/close & monostable
- 3/2, closed or open & monostable
- 5/2, bistable or monostable
- 5/3, pressurized, exhausted or closed
Number of valve positions: 24 max
Pressure zones: 13 max
Pneumatic working port: M, G, QS offerings
Pneumatic connection 1: G and QS offerings
Pilot air port 12/14: G1/8
Pilot air supply port: external, internal
Exhaust air function (with flow control option)
Operating pressure: -0.09 to 1MPa (-0.9 to 10bar)
Pilot pressure: 0.15 to 0.8MPa (1.5 bar to 8 bar)
Manual override: non-detenting, detenting or covered
Voltage: 24 V

The Festo VTUG Series Valve Manifold is an expansive application solution for compressed air systems. This series is a fixed grid with a piston gate valve. Pilot-controlled, the VTUG provides electronic actuation via various interface offerings including a Festo-specific I-Port, Bus Node CTEU, Sub-D or ribbon cable, IO-Link, and multi-pin plug. Extensive push-in connectors add to an already versatile model, built around reversible piston spool valves with up to 24 valve positions, and up to 13 pressure zones possible. The VTUG Series is compatible with the VUVG Series Solenoid Valve. This manifold is a durable, economic solution with RoHS compliant materials. Each unit comes with shock, vibration, and corrosion resistance(Class 2). Please contact a Motion World engineer to learn more.
