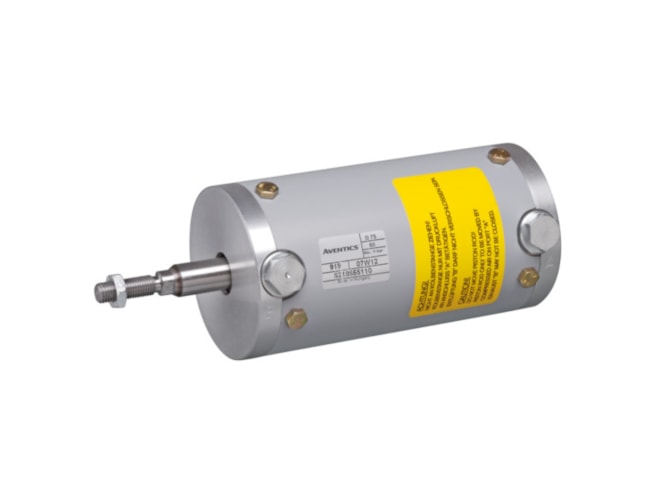

Aventics RDC-SA-075-0060 Pneumatic Linear Actuator

Diaphragm-type cylinder. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • RDC-SA-075-0060
  • 5218555110
Highlights...

Features

  • Bore Size: 75 mm
  • Compressed air connection: G 3/8
  • Cylinder Function: Single-acting, retracted without pressure
  • Industry: Industrial
  • Max Working Pressure: 8 bar
  • Piston force extending: 2783 N
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Stroke Length: 60 mm
  • Dimension: 10x4.37x4.69 (inches)
View other configurations.
AVENTICS Diaphragm and piston actuators, Series RDC 5218555110
