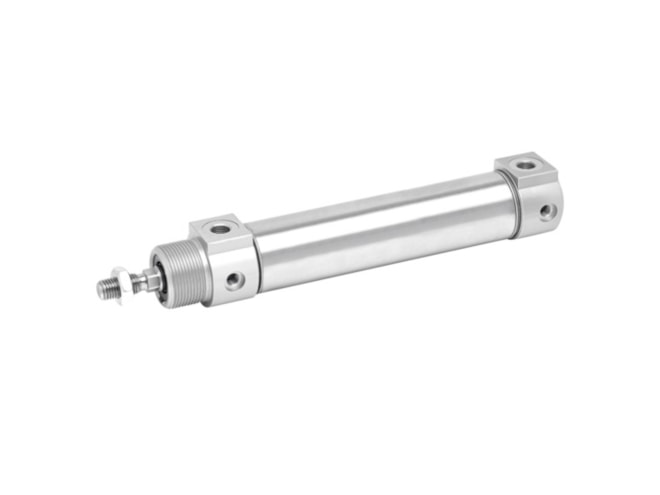

Aventics RPC-DA-032-0160-11-1-2-BAS Pneumatic Linear Actuator

Piston rod cylinders, Round cylinder. View other configurations.

$128.14
Part Numbers
  • RPC-DA-032-0160-11-1-2-BAS
  • R412020645
Highlights...

Features

  • Bore Size: 32 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 505 N
  • Piston force retracting: 435 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 160 mm
  • Dimension: 11.81x1.57x1.57 (inches)
View other configurations.
AVENTICS Round cylinder, Series RPC R412020645
