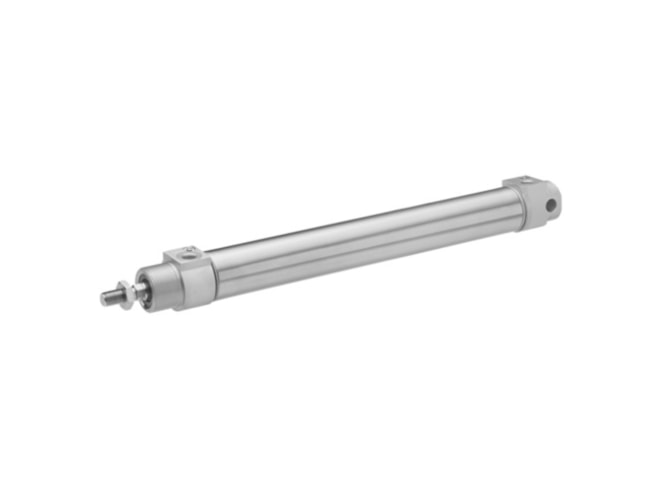

Aventics RPC-DA-040-0080-13-3-2-BAS Pneumatic Linear Actuator

Piston rod cylinders, Round cylinder. View other configurations.

Call for pricing
Part Numbers
  • RPC-DA-040-0080-13-3-2-BAS
  • R412020785
Highlights...

Features

  • Bore Size: 40 mm
  • Compressed air connection: G 1/4
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, Heat resistant
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 790 N
  • Piston force retracting: 660 N
  • Piston rod modification: single
  • Piston rod thread: M12x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Heat-Resistant Scraper
  • Stroke Length: 80 mm
  • Dimension: 10.63x1.97x1.97 (inches)
View other configurations.
AVENTICS Round cylinder, Series RPC R412020785
