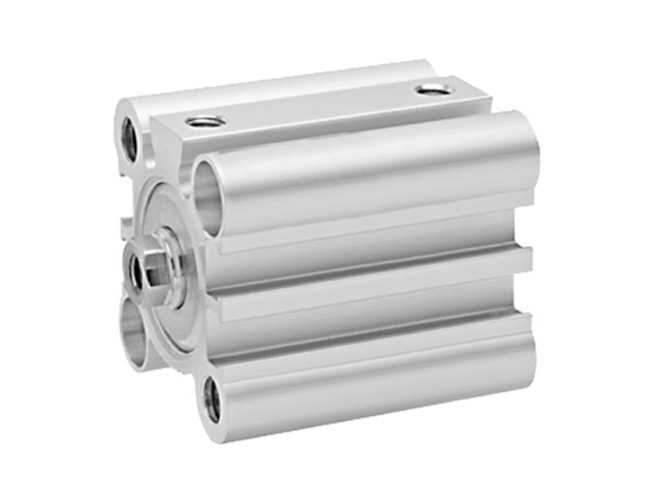

Aventics SSI-SA-016-0005-2-02-2-000-000-00 Pneumatic Linear Actuator

Piston rod cylinders, ISO 15524, Standard cylinders, Short-stroke cylinder, ISO cylinder. View other configurations.

$28.84
Part Numbers
  • SSI-SA-016-0005-2-02-2-000-000-00
  • R480637922
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 127 N
  • Piston force retracting: 8 N
  • Piston rod modification: single
  • Piston rod thread: M4
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 5 mm
  • Dimension: 1.57x1.18x1.18 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R480637922
