Aventics SSI-SA-050-0025-2-02-2-000-000-00 Pneumatic Linear Actuator

ISO cylinder, ISO 15524, Standard cylinders, Piston rod cylinders, Short-stroke cylinder. View other configurations.

$88.00
Part Numbers
  • SSI-SA-050-0025-2-02-2-000-000-00
  • R480637937
Highlights...

Features

  • Bore Size: 50 mm
  • Compressed air connection: G 1/4
  • Cushioning: Elastic cushioning

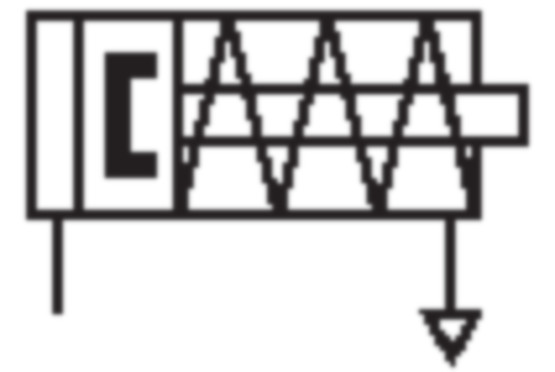

  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1237 N
  • Piston force retracting: 39 N
  • Piston rod modification: single
  • Piston rod thread: M10
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 2.95x2.95x2.56 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R480637937
