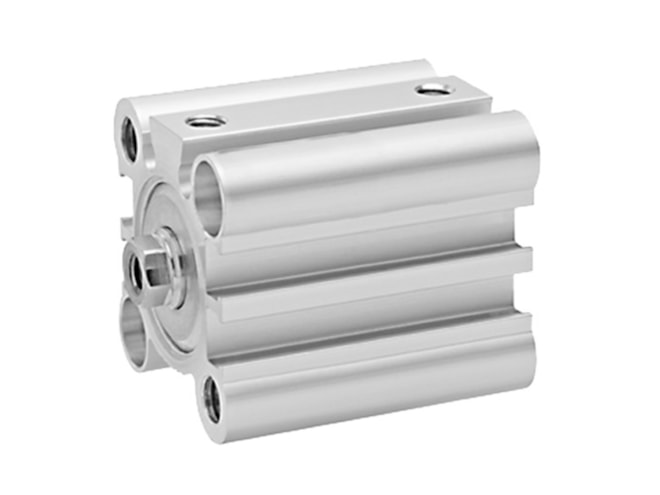

Aventics SSI-DA-020-0030-4-02-2-000-000-00 Pneumatic Linear Actuator

ISO cylinder, Piston rod cylinders, Standard cylinders, ISO 15524, Short-stroke cylinder. View other configurations.

$53.31
Part Numbers
  • SSI-DA-020-0030-4-02-2-000-000-00
  • R412019821
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 198 N
  • Piston force retracting: 148 N
  • Piston rod modification: single
  • Piston rod thread: M5
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 30 mm
  • Dimension: 2.56x1.38x1.38 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R412019821
