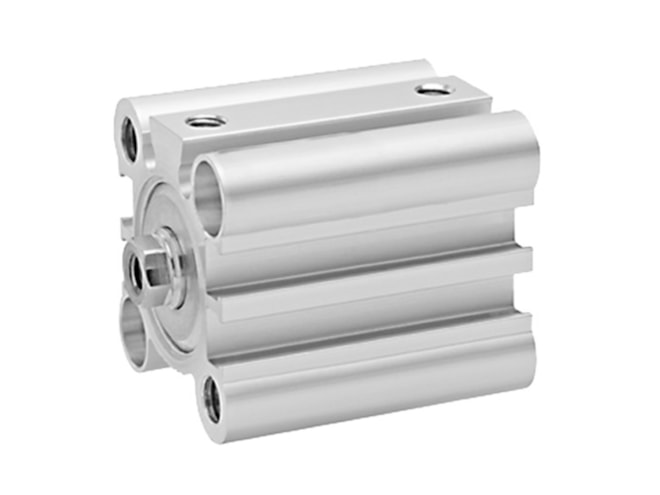

Aventics SSI-DA-050-0050-4-02-2-000-000-00 Pneumatic Linear Actuator

ISO cylinder, Short-stroke cylinder, Standard cylinders, ISO 15524, Piston rod cylinders. View other configurations.

$115.93
Part Numbers
  • SSI-DA-050-0050-4-02-2-000-000-00
  • R412019859
Highlights...

Features

  • Bore Size: 50 mm
  • Compressed air connection: G 1/4
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1237 N
  • Piston force retracting: 1039 N
  • Piston rod modification: single
  • Piston rod thread: M10
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 3.94x2.76x2.56 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R412019859
