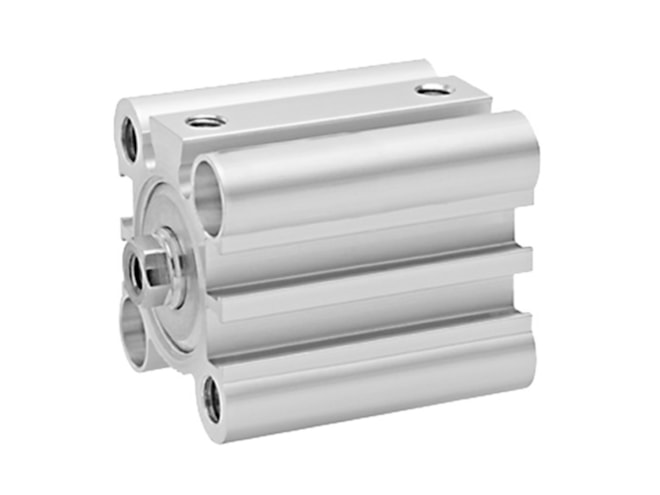

Aventics SSI-DA-063-0010-4-02-2-000-000-00 Pneumatic Linear Actuator

Piston rod cylinders, Short-stroke cylinder, ISO cylinder, Standard cylinders, ISO 15524. View other configurations.

$126.05
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • SSI-DA-063-0010-4-02-2-000-000-00
  • R412019863
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: G 1/4
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1964 N
  • Piston force retracting: 1766 N
  • Piston rod modification: single
  • Piston rod thread: M10
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 10 mm
  • Dimension: 3.15x2.56x3.15 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R412019863
