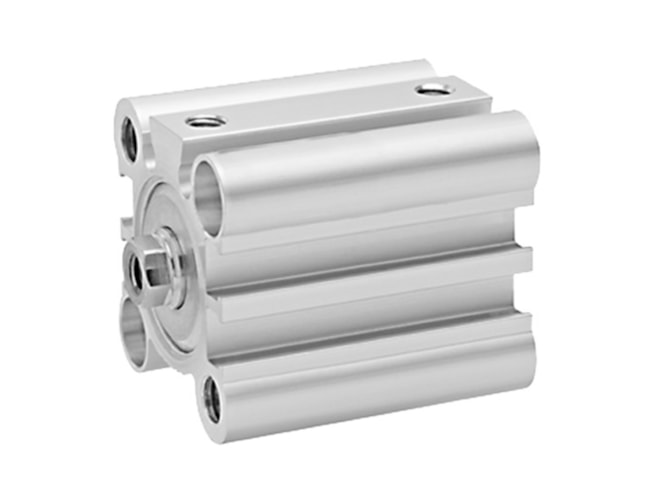

Aventics SSI-DA-080-0025-4-02-2-000-000-00 Pneumatic Linear Actuator

ISO cylinder, ISO 15524, Piston rod cylinders, Standard cylinders, Short-stroke cylinder. View other configurations.

$171.42
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • SSI-DA-080-0025-4-02-2-000-000-00
  • R412019876
Highlights...

Features

  • Bore Size: 80 mm
  • Compressed air connection: G 3/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 3167 N
  • Piston force retracting: 2857 N
  • Piston rod modification: single
  • Piston rod thread: M16
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 3.54x3.94x3.94 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R412019876
