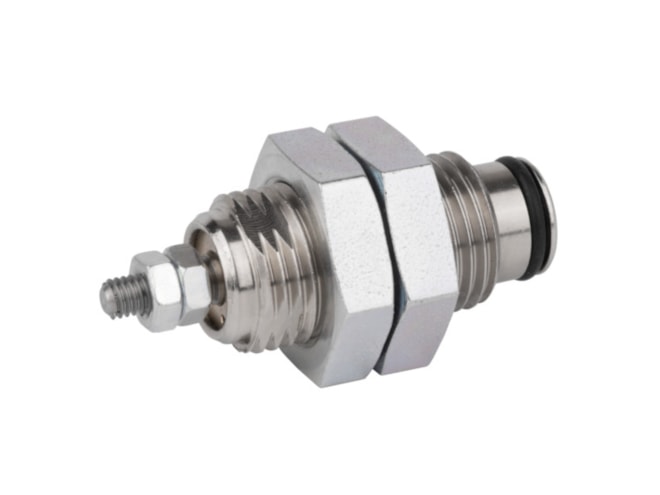

Aventics SWN-SA-16-010-M22X1,5 Pneumatic Linear Actuator

Mini cylinder, Screw-in cylinder. View other configurations.

$52.69
Part Numbers
  • SWN-SA-16-010-M22X1,5
  • 0822406921
Highlights...

Features

  • Bore Size: 16 mm
  • Cushioning: Elastic cushioning

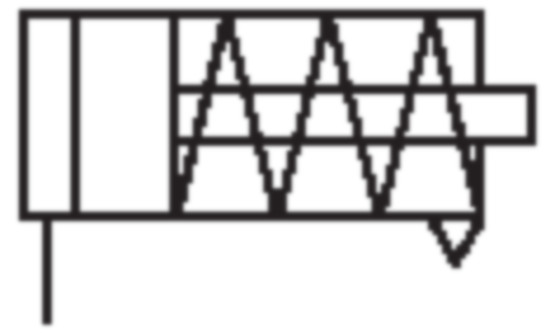

  • Cylinder Function: single-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 8 bar
  • Piston force extending: 100 N
  • Piston rod modification: single
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 10 mm
  • Dimension: 3.15x2.76x1.18 (inches)
View other configurations.
AVENTICS Screw-in cylinder, Series SWN 0822406921
