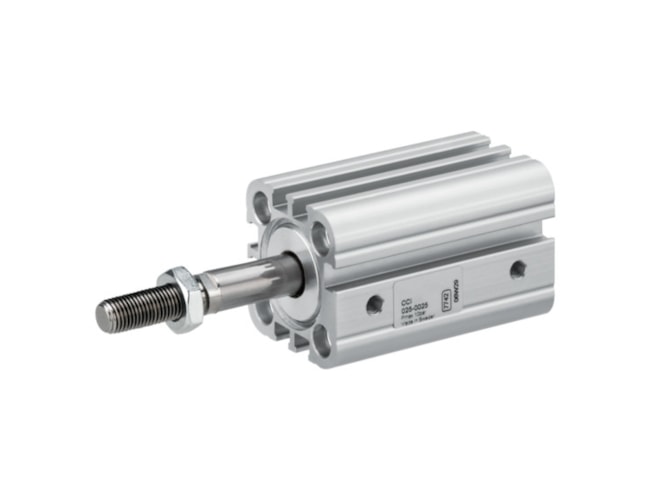

Aventics CCI-SA-020-0025-0031224110000000000016-B Pneumatic Linear Actuator

multi-position cylinder, ISO 21287, Piston rod cylinders, Compact cylinder, ISO cylinder, Standard cylinders. View other configurations.

Call for pricing
Part Numbers
  • CCI-SA-020-0025-0031224110000000000016-B
  • R422001583
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, extended without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 13 N
  • Piston force retracting: 198 N
  • Piston rod modification: single
  • Piston rod thread: M8x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 5x2.09x1.57 (inches)
View other configurations.
AVENTICS Compact cylinder ISO 21287, Series CCI R422001583
