Aventics CCI-SA-100-0025-0031224110000000000028-B Pneumatic Linear Actuator

Standard cylinders, ISO 21287, ISO cylinder, multi-position cylinder, Piston rod cylinders, Compact cylinder. View other configurations.

Call for pricing
Part Numbers
  • CCI-SA-100-0025-0031224110000000000028-B
  • R422001590
Highlights...

Features

  • Bore Size: 100 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning

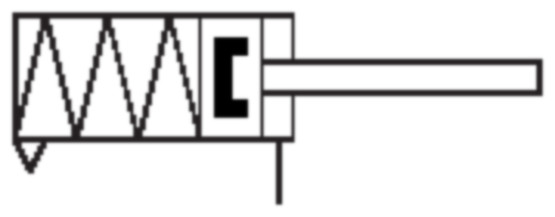

  • Cylinder Function: Single-acting, extended without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 215 N
  • Piston force retracting: 4948 N
  • Piston rod modification: single
  • Piston rod thread: M16x1,5
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 6.30x4.72x4.72 (inches)
View other configurations.
AVENTICS Compact cylinder ISO 21287, Series CCI R422001590
