Aventics CCI-SA-020-0025-0021234110000200000000-B Pneumatic Linear Actuator

ISO 21287, ISO cylinder, Compact cylinder, Standard cylinders, multi-position cylinder, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • CCI-SA-020-0025-0021234110000200000000-B
  • R422001633
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning

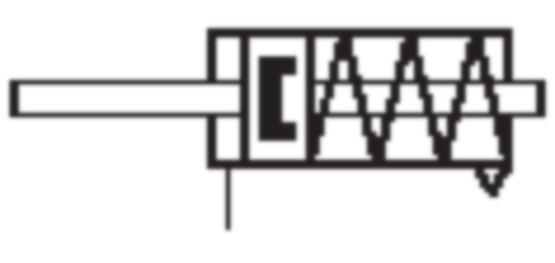

  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 135 N
  • Piston force retracting: 13 N
  • Piston rod modification: through
  • Piston rod thread: M6
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 3.94x1.38x1.38 (inches)
View other configurations.
AVENTICS Compact cylinder ISO 21287, Series CCI R422001633
