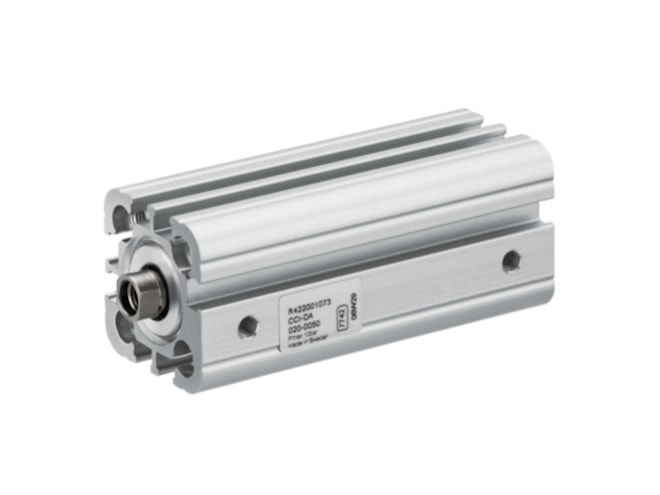

Aventics CCI-DA-100-0030-0041224110000200000000-B Pneumatic Linear Actuator

Standard cylinders, Piston rod cylinders, Compact cylinder, multi-position cylinder, ISO 21287, ISO cylinder. View other configurations.

$263.32
Part Numbers
  • CCI-DA-100-0030-0041224110000200000000-B
  • R422001060
Highlights...

Features

  • Bore Size: 100 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 4145 N
  • Piston force retracting: 3886 N
  • Piston rod modification: single
  • Piston rod thread: M12
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 30 mm
  • Dimension: 5.91x5.91x5.91 (inches)
View other configurations.
AVENTICS Compact cylinder ISO 21287, Series CCI R422001060
