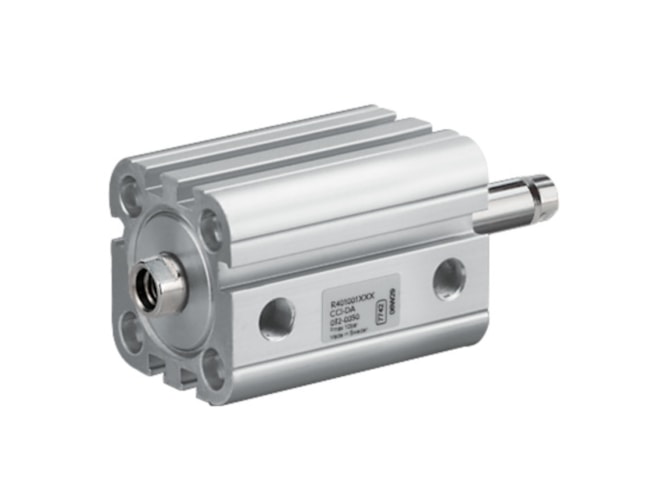

Aventics CCI-DA-016-0010-004123411000020000000000 Pneumatic Linear Actuator

Standard cylinders, ISO cylinder, Piston rod cylinders, ISO 21287, multi-position cylinder, Compact cylinder. View other configurations.

Call for pricing
Part Numbers
  • CCI-DA-016-0010-004123411000020000000000
  • R422001702
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 91 N
  • Piston force retracting: 91 N
  • Piston rod modification: through
  • Piston rod thread: M4
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 10 mm
  • Dimension: 1.97x0.39x0.39 (inches)
View other configurations.
AVENTICS Compact cylinder ISO 21287, Series CCI R422001702
