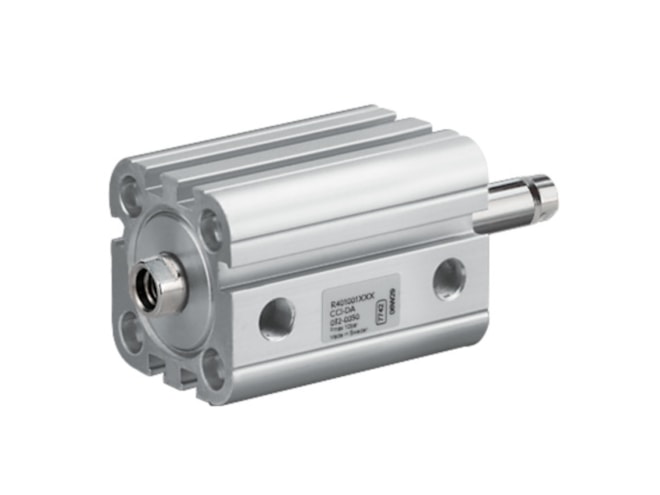

Aventics CCI-DA-025-0010-0041234110000200000000-B Pneumatic Linear Actuator

ISO 21287, Piston rod cylinders, Standard cylinders, ISO cylinder, Compact cylinder, multi-position cylinder. View other configurations.

Aventics CCI-DA-025-0010-0041234110000200000000-B Pneumatic Linear Actuator — Aventics-CCI-DA-025-0010-0041234110000200000000-B

$99.77

Part Numbers

CCI-DA-025-0010-0041234110000200000000-B
R422001704

Highlights...

CCI-DA-025-0010-0041234110000200000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 25 mm
Compressed air connection: M5
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 216 N
Piston force retracting: 216 N
Piston rod modification: through
Piston rod thread: M6
Piston rod thread type: Internal thread
Scraper Type: Standard Industry Scraper
Stroke Length: 10 mm
Dimension: 1.97x1.38x1.38 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001704
