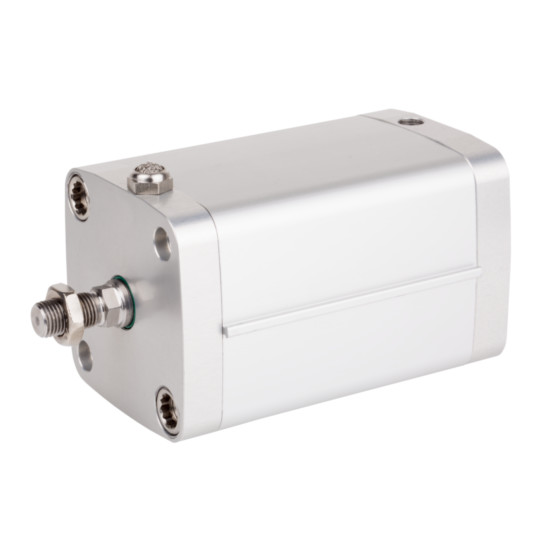

Aventics CCL-SA-020-0025-IC-0210016111AB00000-BAS Pneumatic Linear Actuator

ISO cylinder, Standard cylinders, ISO 21287, Compact cylinder, suitable for use in food processing, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • CCL-SA-020-0025-IC-0210016111AB00000-BAS
  • R480668900
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard, suitable for use in food processing, High corrosion
  • Force min.: 13 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 185 N
  • Piston force retracting: 12 N
  • Piston rod modification: single
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
View other configurations.
AVENTICS ISO 21287, Series CCL-IC R480668900
