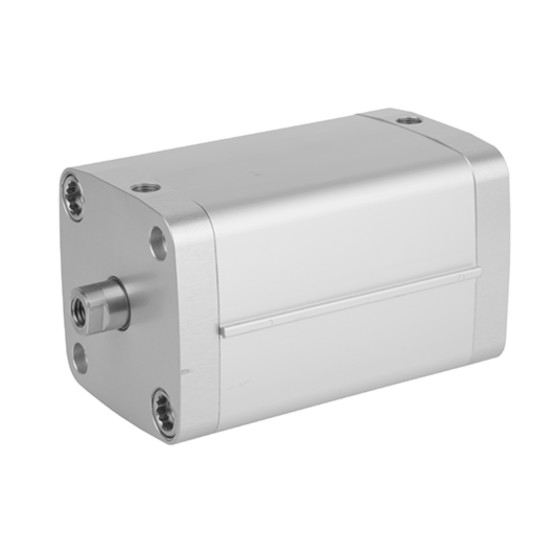

Aventics CCL-DA-050-0050-IC-0210200111AB00000-BAS Pneumatic Linear Actuator
Compact cylinder, Standard cylinders, suitable for use in food processing, ISO cylinder, ISO 21287, Piston rod cylinders. View other configurations.

- CCL-DA-050-0050-IC-0210200111AB00000-BAS
- R480668847
- CCL-DA-050-0050-IC-0210200111AB00000-BAS
- By Aventics
- FREE Shipping on orders of $1,000 or more
Overview
Features
- Bore Size: 50 mm
- Compressed air connection: G 1/8
- Cushioning: Elastic cushioning
- Cylinder Function: Double-acting
- Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional, High corrosion
- Industry: Industrial
- Magnetic piston: Piston with magnet
- Max Working Pressure: 10 bar
- Piston force extending: 1237 N
- Piston force retracting: 1110 N
- Piston rod modification: single
- Piston rod thread: M10
- Piston rod thread type: Internal thread
- Scraper Type: Standard Industry Scraper
- Stroke Length: 50 mm
- Dimension: 4.13x2.76x2.95 (inches)
