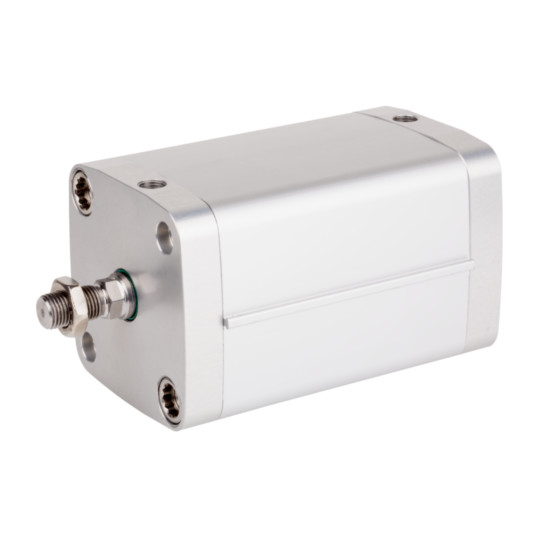

Aventics CCL-DA-040-0050-IC-0210019111AB00000-BAS Pneumatic Linear Actuator

Piston rod cylinders, suitable for use in food processing, ISO 21287, Compact cylinder, ISO cylinder, Standard cylinders. View other configurations.

Call for pricing
Part Numbers
  • CCL-DA-040-0050-IC-0210019111AB00000-BAS
  • R480668730
Highlights...

Features

  • Bore Size: 40 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional, High corrosion
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 792 N
  • Piston force retracting: 720 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 4.72x2.36x2.36 (inches)
View other configurations.
AVENTICS ISO 21287, Series CCL-IC R480668730
