Aventics CCL-DA-050-0080-IS-0210032211AB00000-BAS Pneumatic Linear Actuator

ISO 21287, Compact cylinder, Piston rod cylinders, ISO cylinder, Standard cylinders, suitable for use in food processing. View other configurations.

$274.61
Part Numbers
  • CCL-DA-050-0080-IS-0210032211AB00000-BAS
  • R480060028
Highlights...

Features

  • Bore Size: 50 mm
  • Compressed air connection: G 1/4
  • Cushioning: Pneumatic adjustable cushioning

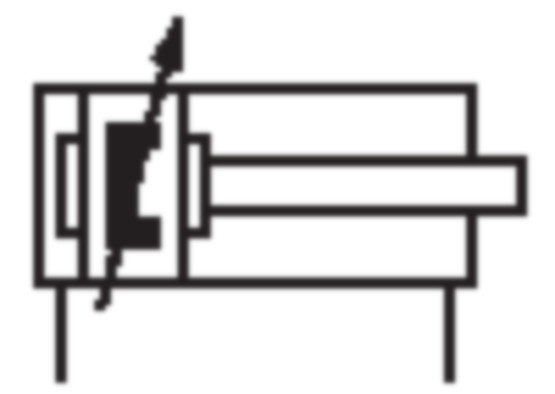

  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional, High corrosion
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1237 N
  • Piston force retracting: 1039 N
  • Piston rod modification: single
  • Piston rod thread: M16x1,5
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 80 mm
  • Dimension: 10.43x2.76x2.76 (inches)
View other configurations.
AVENTICS ISO 15552, series CCL-IS R480060028
