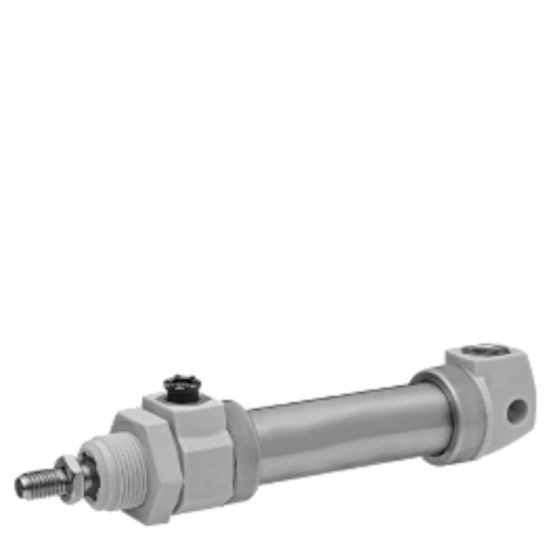

Aventics ICM-SA-025-0025-0-61 Pneumatic Linear Actuator

Standard cylinders, Mini cylinder, Piston rod cylinders, ISO cylinder, suitable for use in food processing, ISO 6432. View other configurations.

Call for pricing
Part Numbers
  • ICM-SA-025-0025-0-61
  • 1326125020
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning

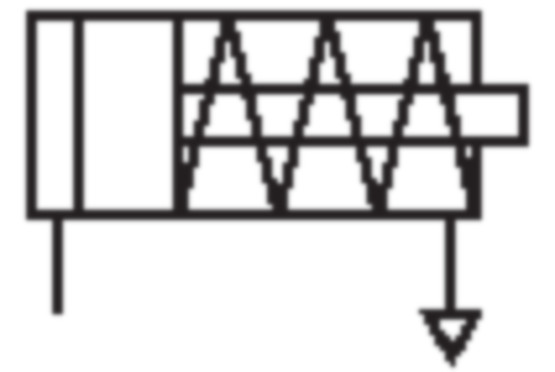

  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard, suitable for use in food processing
  • Force max.: 62 N
  • Force min.: 28 N
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 250 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 6.10x1.30x1.34 (inches)
View other configurations.
AVENTICS Mini cylinder, Series ICM 1326125020
