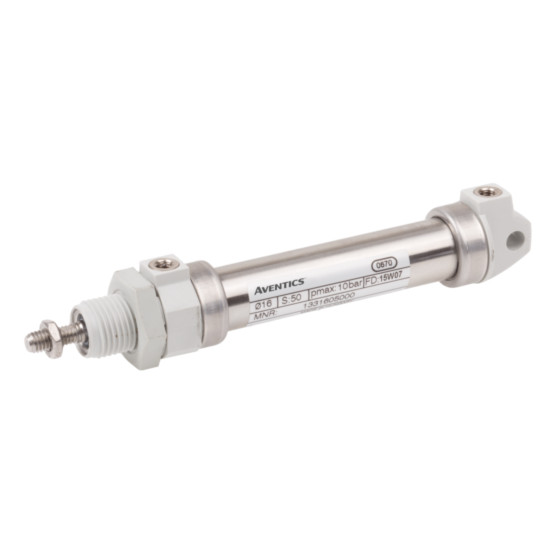

Aventics ICM-DA-025-0040-O Pneumatic Linear Actuator

suitable for use in food processing, ISO 6432, ISO cylinder, Piston rod cylinders, Standard cylinders, Mini cylinder. View other configurations.

Call for pricing
Part Numbers
  • ICM-DA-025-0040-O
  • R404050929
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, suitable for use in food processing
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 309 N
  • Piston force retracting: 260 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 40 mm
  • Dimension: 5.91x1.18x1.18 (inches)
View other configurations.
AVENTICS Mini cylinder, Series ICM R404050929
