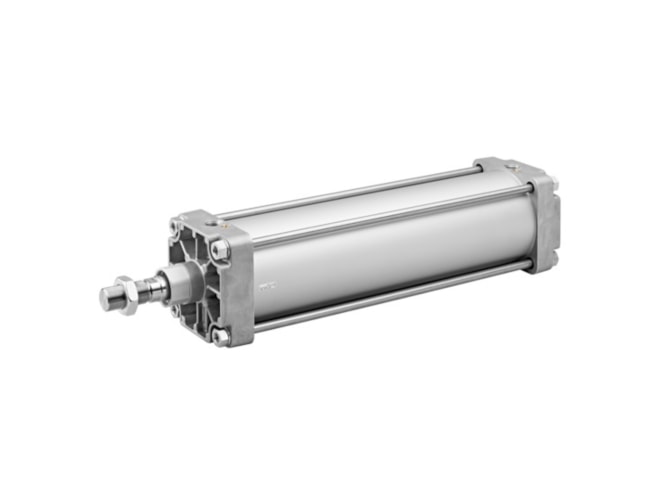

Aventics ITS-DA-320-0160-2-2-1-1-8-000-00-000-BAS Pneumatic Linear Actuator

ISO 15552, Standard cylinders, Piston rod cylinders, ISO cylinder, Tie rod cylinder. View other configurations.

Call for pricing
Part Numbers
  • ITS-DA-320-0160-2-2-1-1-8-000-00-000-BAS
  • R480627468
Highlights...

Features

  • Bore Size: 320 mm
  • Compressed air connection: G 1
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 49705 N
  • Piston force retracting: 47778 N
  • Piston rod modification: single
  • Piston rod thread: M48x2
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 160 mm
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series ITS R480627468
