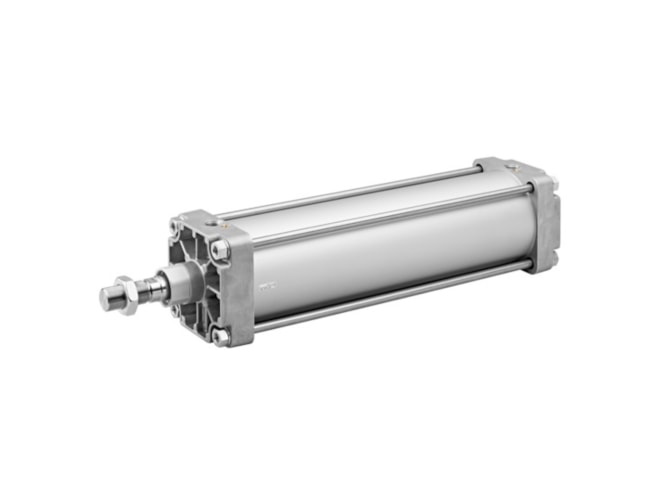

Aventics ITS-DA-250-0050-1-2-1-1-8-000-00-000-BAS Pneumatic Linear Actuator

ISO 15552, ISO cylinder, Standard cylinders, Tie rod cylinder, Piston rod cylinders. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • ITS-DA-250-0050-1-2-1-1-8-000-00-000-BAS
  • R480627428
Highlights...

Features

  • Bore Size: 250 mm
  • Compressed air connection: G 1
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 30925 N
  • Piston force retracting: 29688 N
  • Piston rod modification: single
  • Piston rod thread: M42x2
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 17.72x11.02x11.02 (inches)
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series ITS R480627428
