Aventics ITS-DA-320-0400-1-2-1-1-8-000-00-000-BAS Pneumatic Linear Actuator

Standard cylinders, ISO 15552, ISO cylinder, Piston rod cylinders, Tie rod cylinder. View other configurations.

Call for pricing
Part Numbers
  • ITS-DA-320-0400-1-2-1-1-8-000-00-000-BAS
  • R480627448
Highlights...

Features

  • Bore Size: 320 mm
  • Compressed air connection: G 1

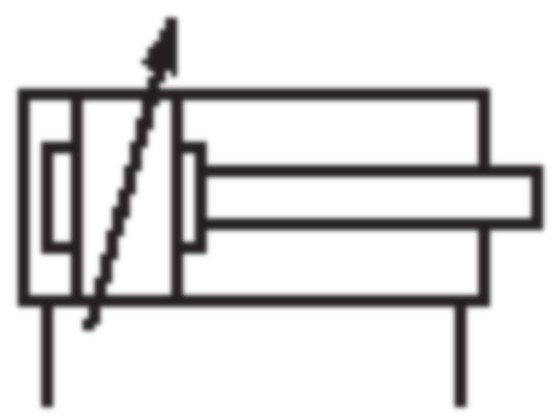

  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 50668 N
  • Piston force retracting: 48704 N
  • Piston rod modification: single
  • Piston rod thread: M48x2
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 400 mm
  • Dimension: 33.46x17.72x17.72 (inches)
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series ITS R480627448
