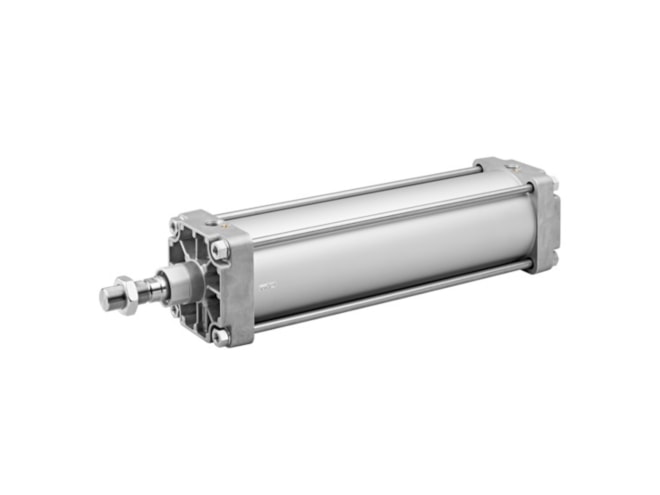

Aventics ITS-DA-200-0400-1-1-1-1-8-000-00-000-BAS Pneumatic Linear Actuator

ISO 15552, ISO cylinder, Standard cylinders, Piston rod cylinders, Tie rod cylinder. View other configurations.

$1,871.56
Part Numbers
  • ITS-DA-200-0400-1-1-1-1-8-000-00-000-BAS
  • R480627688
Highlights...

Features

  • Bore Size: 200 mm
  • Compressed air connection: G 3/4
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 19792 N
  • Piston force retracting: 19000 N
  • Piston rod modification: single
  • Piston rod thread: M36x2
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 400 mm
  • Dimension: 29.92x8.27x8.27 (inches)
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series ITS R480627688
